EATON - MOELLER T3-3-8314/Z T3-3-8314/Z 020019 Y7-20019 EATON ELECTRIC Step switches, Contacts: 6, 32 A, front plate: 0-2, 45 °, maintai.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-3-8314/Z 020019 Y7-20019 EATON ELECTRIC Step switches, Contacts: 6, 32 A, front plate: 0-2, 45 °, maintai..

T3-3-8314/Z

020019

Y7-20019

EATON - MOELLER

1 Pcs.

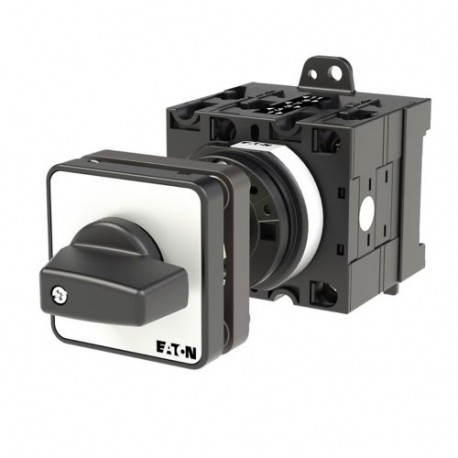

Step switches, Contacts: 6, 32 A, front plate: 0-2, 45 °, maintained, rear mounting Step switch 6 poles 32 A Indicator plate: 0-2 45° Eaton Moeller® series T3 Step switches, T3, 32 A, rear mounting, 3 contact unit(s), Contacts: 6, 45 °, maintained, With 0 (Off) position, 0-2, Design number 8314 Step switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Step switches, represented here by the Eaton Moeller T3-3-8314/Z, allow technicians to sequence electrical loads or transition through predefined stages in automated processing systems. These robust rotary devices handle demanding operational currents while maintaining precise tactile feedback during manual actuation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 12 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Step switch
Catalog Number
020019
Model Code
T3-3-8314/Z
EAN
4015080200192
Product Length/Depth
144 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.237 kg
Certifications
IEC/EN 60947
VDE 0660
UL
CSA-C22.2 No. 94
CSA File No.: 012528
CSA
IEC/EN 60947-3
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
CE
UL File No.: E36332
IEC/EN 60204
CSA Class No.: 3211-05
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
