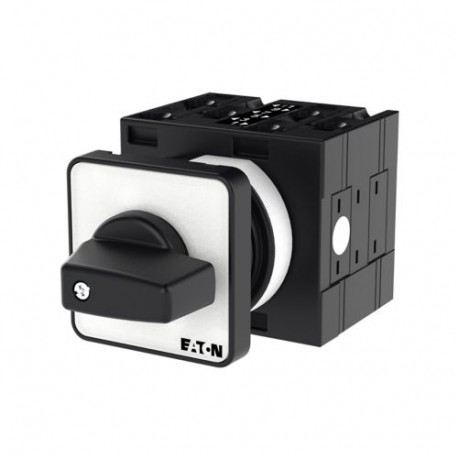

EATON - MOELLER T3-3-8280/E T3-3-8280/E 054745 Y7-54745 EATON ELECTRIC Step switches, Contacts: 6, 32 A, front plate: 0-2, 45 °, maintai.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-3-8280/E 054745 Y7-54745 EATON ELECTRIC Step switches, Contacts: 6, 32 A, front plate: 0-2, 45 °, maintai..

T3-3-8280/E

054745

Y7-54745

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 6, 32 A, front plate: 0-2, 45 °, maintained, flush mounting Step switch 6 poles 32 A Indicator plate: 0-2 45° Eaton Moeller® series T3 Step switches, T3, 32 A, flush mounting, 3 contact unit(s), Contacts: 6, 45 °, maintained, With 0 (Off) position, 0-2, Design number 8280

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller step switch provides durable rotary control for navigating sequential operational modes within industrial electrical enclosures. Engineers incorporate these reliable switching units to maintain structured oversight of multi-tier processes.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T3-3-8280/E
  • Catalogue code: 054745
  • Catalogue title: T3-3-8280/E 054745 Y7-54745 EATON ELECTRIC Step switches, Contacts: 6, 32 A, front plate: 0-2, 45 °, maintai..
  • Product description: General specifications Product Name Eaton Moeller® series T3 Step switch Catalog Number 054745 Model Code T3-3-8280/E EAN 4015080547457 Product Length/Depth 102 mm Product Height 54 mm Product Width 61 mm Product Weight
  • Manufacturer summary: Step switches, Contacts: 6, 32 A, front plate: 0-2, 45 °, maintained, flush mounting Step switch 6 poles 32 A Indicator plate: 0-2 45° Eaton Moeller® series T3 Step switches, T3, 32 A, flush mounting, 3 contact unit(s),

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Step switch
Catalog Number
054745
Model Code
T3-3-8280/E
EAN
4015080547457
Product Length/Depth
102 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.212 kg
Certifications
CE
CSA Class No.: 3211-05
IEC/EN 60204
UL Category Control No.: NLRV
CSA
IEC/EN 60947
UL File No.: E36332
CSA File No.: 012528
UL 60947-4-1
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
VDE 0660
CSA-C22.2 No. 94
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
