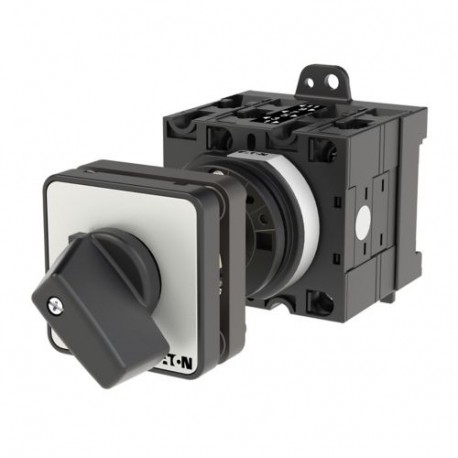

EATON - MOELLER T3-3-8222/Z T3-3-8222/Z 057092 Y7-57092 EATON ELECTRIC Changeoverswitches, Contacts: 6, 32 A, front plate: 1-2, 90 °, ma.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-3-8222/Z 057092 Y7-57092 EATON ELECTRIC Changeoverswitches, Contacts: 6, 32 A, front plate: 1-2, 90 °, ma..

T3-3-8222/Z

057092

Y7-57092

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 6, 32 A, front plate: 1-2, 90 °, maintained, rear mounting Switch 6-pole 32 A Indicator plate: 1-2 90° Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, rear mounting, 3 contact unit(s), Contacts: 6, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 8222 Changeover switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T3-3-8222/Z changeover switch provides reliable manual circuit rerouting, enabling operators to direct electrical loads between alternative pathways in control panels. These switches are standard components in systems requiring flexible source selection or dual-circuit management.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Reverser
  • Number of poles: 3
  • With zero (off) position: No
  • With retraction in 0-position: No
  • Rated permanent current Iu: 32 A
  • Rated operation current Ie at AC-3, 400 V: 23.7 A
  • Rated operation power at AC-3, 400 V: 12 kW
  • Degree of protection (IP), front side: IP65
  • Degree of protection (NEMA), front side: 12
  • Suitable for floor mounting: Yes
  • Suitable for front mounting: No
  • Suitable for distribution board installation: No
  • Suitable for intermediate mounting: Yes
  • Complete device in housing: No
  • Housing material: Plastic
  • Type of control element: Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
057092
Model Code
T3-3-8222/Z
EAN
4015080570929
Product Length/Depth
144 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.237 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
CSA
CSA Class No.: 3211-05
CE
IEC/EN 60947-3
CSA File No.: 012528
UL
UL Category Control No.: NLRV
IEC/EN 60204
CSA-C22.2 No. 94
IEC/EN 60947
UL 60947-4-1
UL File No.: E36332
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
