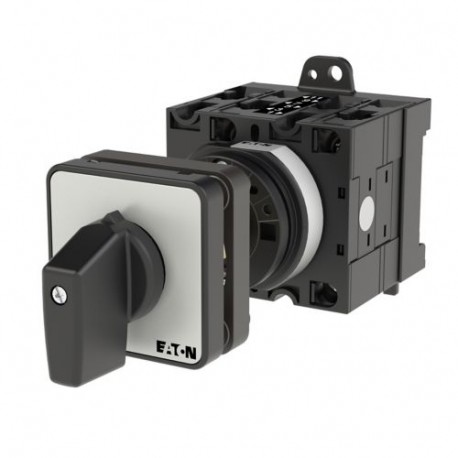

EATON - MOELLER T3-3-8216/Z T3-3-8216/Z 026243 Y7-26243 EATON ELECTRIC Changeoverswitches, Contacts: 6, 32 A, front plate: 2 0 1, 45 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-3-8216/Z 026243 Y7-26243 EATON ELECTRIC Changeoverswitches, Contacts: 6, 32 A, front plate: 2 0 1, 45 °, ..

T3-3-8216/Z

026243

Y7-26243

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 6, 32 A, front plate: 2>0<1, 45 °, momentary, rear mounting Switch 6-pole 32 A Indicator plate: 2>0<1 45° Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, rear mounting, 3 contact unit(s), Contacts: 6, 45 °, momentary, With 0 (Off) position, with spring-return from both directions to 0, 2>0<1, Design number 8216 Changeover switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, with spring-return from both directions to 0, front plate: 2>0<1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T3-3-8216/Z is a changeoverswitch designed to route electrical signals and manage dual-source inputs inside complex automation machinery. Engineers specify these mechanical switches to ensure precise multi-circuit path selection during automated processing cycles.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 12 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
026243
Model Code
T3-3-8216/Z
EAN
4015080262435
Product Length/Depth
144 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.237 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
CE
CSA File No.: 012528
VDE 0660
CSA
IEC/EN 60204
IEC/EN 60947
IEC/EN 60947-3
CSA-C22.2 No. 94
UL
UL Category Control No.: NLRV
CSA Class No.: 3211-07
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
