EATON - MOELLER T3-3-8216/EZ T3-3-8216/EZ 001077 Y7-1077 EATON ELECTRIC Changeoverswitches, Contacts: 6, 32 A, front plate: 2 0 1, 45 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-3-8216/EZ 001077 Y7-1077 EATON ELECTRIC Changeoverswitches, Contacts: 6, 32 A, front plate: 2 0 1, 45 °, ..

T3-3-8216/EZ

001077

Y7-1077

EATON - MOELLER

1 Pcs.

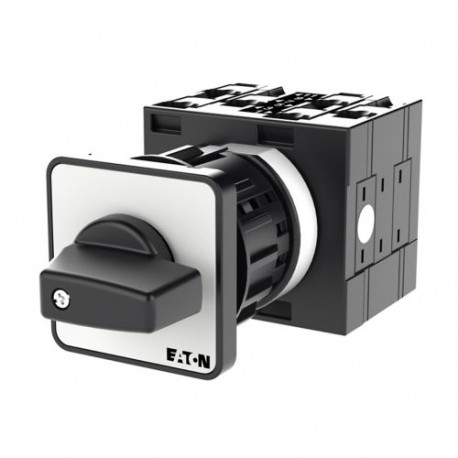

Changeoverswitches, Contacts: 6, 32 A, front plate: 2>0<1, 45 °, momentary, centre mounting Switch 6-pole 32 A Indicator plate: 2>0<1 45° Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, centre mounting, 3 contact unit(s), Contacts: 6, 45 °, momentary, With 0 (Off) position, with spring-return from both directions to 0, 2>0<1, Design number 8216 Changeover switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, with spring-return from both directions to 0, front plate: 2>0<1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
001077
Model Code
T3-3-8216/EZ
EAN
4015080010777
Product Length/Depth
124 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.233 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
CE
UL File No.: E36332
CSA-C22.2 No. 94
UL
IEC/EN 60204
UL 60947-4-1
UL Category Control No.: NLRV
CSA Class No.: 3211-07
IEC/EN 60947-3
CSA File No.: 012528
IEC/EN 60947
VDE 0660
CSA
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 001077 Low-voltage industrial controls and switchgear (EC001105)
Feature Name Feature Value
Model (EF000010) Reverser
Number of poles (EF001391) 3
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) Yes
Rated permanent current Iu (EF001389) 32 A
Rated operation current Ie at AC-3, 400 V (EF001392) 23.7 A
Rated operation power at AC-3, 400 V (EF001364) 12 kW
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Housing material (EF001596) Plastic
Type of control element (EF006976) Short thumb-grip
Type of electrical connection of main circuit (EF006819) Screw connection

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
