T3-3-8216/E 023870 Y7-23870 EATON ELECTRIC Changeoverswitches, Contacts: 6, 32 A, front plate: 2 0 1, 45 °, ..
T3-3-8216/E
023870
Y7-23870
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

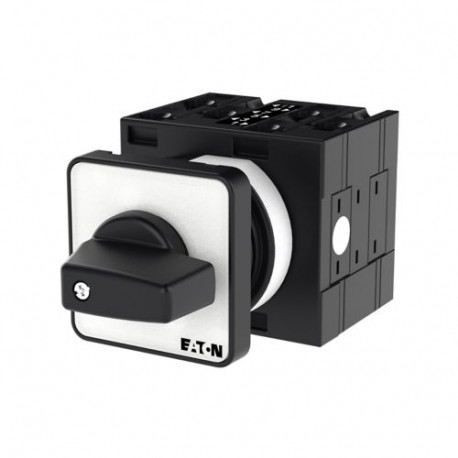

An Eaton Moeller changeoverswitch, part number T3-3-8216/E, is a rotary device engineered to route power among multiple electrical paths within automated machinery and control cabinets. These components enable manual selection of operating modes with spring-return features for specific control logic.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Reverser
- Number of poles (EF001391): 3
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): Yes
- Rated permanent current Iu (EF001389): 32 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
- Rated operation power at AC-3, 400 V (EF001364): 12 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
CSA File No.: 012528
IEC/EN 60204
UL
CE
UL 60947-4-1
UL Category Control No.: NLRV
VDE 0660
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
CSA
UL File No.: E36332
CSA Class No.: 3211-05
