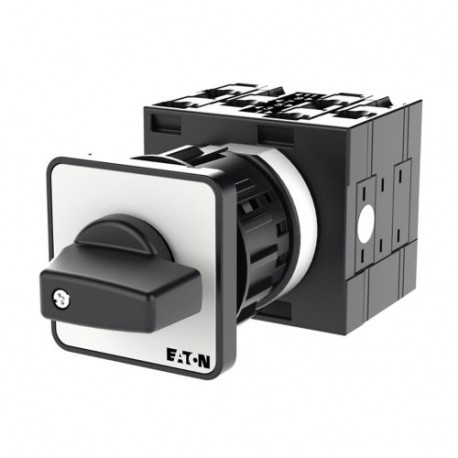

EATON - MOELLER T3-3-8212/EZ T3-3-8212/EZ 003080 Y7-3080 EATON ELECTRIC Changeoverswitches, Contacts: 6, 32 A, front plate: 1-0-2, 60 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-3-8212/EZ 003080 Y7-3080 EATON ELECTRIC Changeoverswitches, Contacts: 6, 32 A, front plate: 1-0-2, 60 °, ..

T3-3-8212/EZ

003080

Y7-3080

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 6, 32 A, front plate: 1-0-2, 60 °, maintained, centre mounting Switch Switch 6 poles 32 A Indicator plate: 1-0-2 60° Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, centre mounting, 3 contact unit(s), Contacts: 6, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8212 Changeover switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller changeover switch (T3-3-8212/EZ) is a dependable manual switching device engineered to redirect electrical currents between alternate circuits or operational modes. Panel builders frequently incorporate these components into control enclosures for industrial automation, conveyor systems, and equipment testing rigs.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 12 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
003080
Model Code
T3-3-8212/EZ
EAN
4015080030805
Product Length/Depth
124 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.233 kg
Certifications
CE
IEC/EN 60204
VDE 0660
CSA Class No.: 3211-05
IEC/EN 60947
UL 60947-4-1
UL File No.: E36332
CSA
CSA File No.: 012528
CSA-C22.2 No. 94
UL
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
