T3-2-8221/Z 047600 Y7-47600 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: 1-2, 90 °, ma..
T3-2-8221/Z
047600
Y7-47600
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

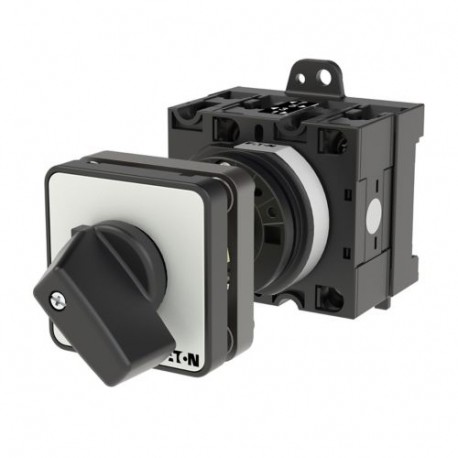

Serving as a reliable manual transfer device, the Eaton Moeller changeover switch (part number T3-2-8221/Z) allows operators to toggle electrical loads between two separate supply lines or circuit configurations. These robust rotary switches are essential for routing power securely in industrial control cabinets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Reverser
- Number of poles (EF001391): 2
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Rated permanent current Iu (EF001389): 32 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
- Rated operation power at AC-3, 400 V (EF001364): 12 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): Yes
- Suitable for front mounting (EF007246): No
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): Yes
- Complete device in housing (EF007317): No
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
UL Category Control No.: NLRV
CSA-C22.2 No. 94
CSA
VDE 0660
IEC/EN 60947
UL 60947-4-1
UL
IEC/EN 60204
CE
IEC/EN 60947-3
CSA Class No.: 3211-05
