T3-2-8221/EZ 001025 Y7-1025 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: 1-2, 90 °, ma..
T3-2-8221/EZ
001025
Y7-1025
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

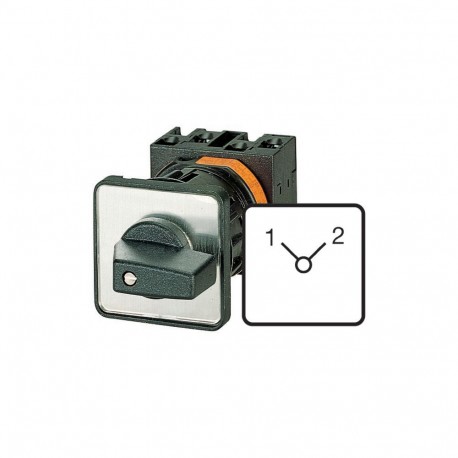

A changeover switch is an electrical control component designed to redirect power between different circuits or alter operational states in industrial machinery. This Eaton Moeller T3-2-8221/EZ device facilitates safe, manual transition pathways within complex automation panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Reverser
- Number of poles (EF001391): 2
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Rated permanent current Iu (EF001389): 32 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
- Rated operation power at AC-3, 400 V (EF001364): 12 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
IEC/EN 60204
UL 60947-4-1
CSA File No.: 012528
UL File No.: E36332
UL Category Control No.: NLRV
IEC/EN 60947
CSA Class No.: 3211-05
IEC/EN 60947-3
CSA
CSA-C22.2 No. 60947-4-1-14
UL
CE
CSA-C22.2 No. 94
