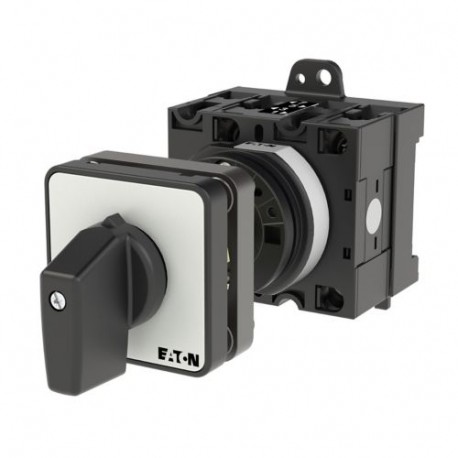

EATON - MOELLER T3-2-8211/Z T3-2-8211/Z 064210 Y7-64210 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: 1-0-2, 60 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-8211/Z 064210 Y7-64210 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: 1-0-2, 60 °, ..

T3-2-8211/Z

064210

Y7-64210

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 32 A, front plate: 1-0-2, 60 °, maintained, rear mounting Switch 4-pole 32 A Indicator plate: 1-0-2 60° Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, rear mounting, 2 contact unit(s), Contacts: 4, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8211

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T3-2-8211/Z is a changeover switch utilized for manual source selection and circuit isolation in electrical control systems. These panel-mounted switches allow operators to redirect active lines securely between different operational states or supply feeds. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T3-2-8211/Z
  • Catalogue code: 064210
  • Catalogue title: T3-2-8211/Z 064210 Y7-64210 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: 1-0-2, 60 °, ..
  • Product description: General specifications Product Name Eaton Moeller® series T3 Changeover switch Catalog Number 064210 Model Code T3-2-8211/Z EAN 4015080642107 Product Length/Depth 133 mm Product Height 54 mm Product Width 61 mm Product W
  • Manufacturer summary: Changeoverswitches, Contacts: 4, 32 A, front plate: 1-0-2, 60 °, maintained, rear mounting Switch 4-pole 32 A Indicator plate: 1-0-2 60° Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, rear mounting, 2 contact uni

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
064210
Model Code
T3-2-8211/Z
EAN
4015080642107
Product Length/Depth
133 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.195 kg
Certifications
UL Category Control No.: NLRV
UL File No.: E36332
CSA File No.: 012528
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
UL
CE
VDE 0660
CSA Class No.: 3211-05
IEC/EN 60947-3
IEC/EN 60204
IEC/EN 60947
CSA
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
