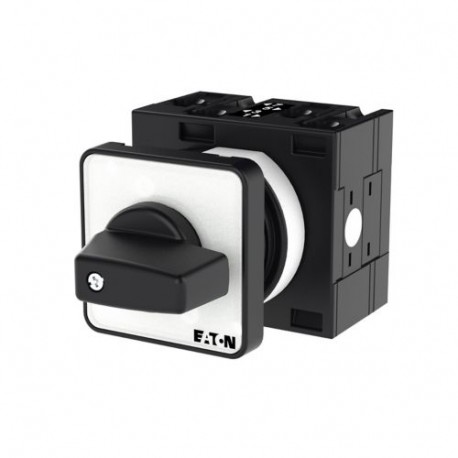

T3-2-8211/E 061837 Y7-61837 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: 1-0-2, 60 °, ..
T3-2-8211/E
061837
Y7-61837
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller T3-2-8211/E changeover switch redirects electrical current between different circuit paths in commercial and industrial control setups. Changeover switches are standard components used for source selection, manual backups, and operational routing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model: Reverser
- Number of poles: 2
- With zero (off) position: Yes
- With retraction in 0-position: No
- Rated permanent current Iu: 32 A
- Rated operation current Ie at AC-3, 400 V: 23.7 A
- Rated operation power at AC-3, 400 V: 12 kW
- Degree of protection (IP), front side: IP65
- Degree of protection (NEMA), front side: 12
- Suitable for floor mounting: No
- Suitable for front mounting: Yes
- Suitable for distribution board installation: No
- Suitable for intermediate mounting: No
- Complete device in housing: No
- Housing material: Plastic
- Type of control element: Short thumb-grip
More info
▲General specifications
CSA File No.: 012528
CSA
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
IEC/EN 60947
UL Category Control No.: NLRV
UL 60947-4-1
UL File No.: E36332
CSA Class No.: 3211-05
IEC/EN 60204
IEC/EN 60947-3
UL
VDE 0660
