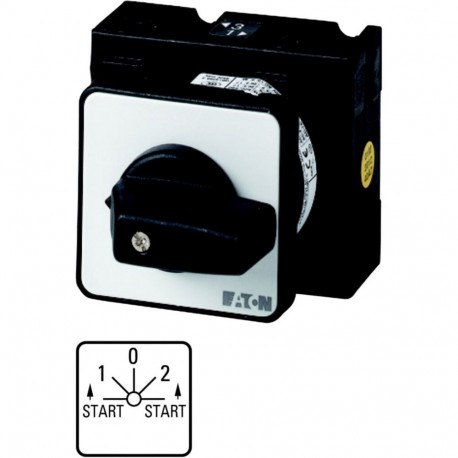

EATON - MOELLER T3-2-8177/E T3-2-8177/E 078479 Y7-78479 EATON ELECTRIC Spring-return switch, Contacts: 4, 32 A, front plate: START 1-0-2.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-8177/E 078479 Y7-78479 EATON ELECTRIC Spring-return switch, Contacts: 4, 32 A, front plate: START 1-0-2..

T3-2-8177/E

078479

Y7-78479

EATON - MOELLER

1 Pcs.

Spring-return switch, Contacts: 4, 32 A, front plate: START>1-0-2 Switch with 4-pole return 32 A Indicator plate: Eaton Moeller® series T3 Spring-return switch, T3, 32 A, flush mounting, 2 contact unit(s), Contacts: 4, 45 °, momentary/maintained, With 0 (Off) position, with spring-return from both directions, START>1-0-2 Spring-return switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: momentary/maintained, With 0 (Off) position, with spring-return from both directions, 2 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: START>1-0-2

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller T3-2-8177/E spring-return switch acts as a momentary or maintained control component deployed in industrial automation to command specific operational states. Spring-return mechanisms automatically bias the actuator back to a designated rest position upon release, enhancing operator safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Number of switch positions (EF000231): 5
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Spring-return switch
Catalog Number
078479
Model Code
T3-2-8177/E
EAN
4015080784791
Product Length/Depth
91 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.172 kg
Certifications
UL
CE
IEC/EN 60204
UL File No.: E36332
CSA-C22.2 No. 94
UL 60947-4-1
CSA
IEC/EN 60947-3
CSA Class No.: 3211-05
CSA File No.: 012528
UL Category Control No.: NLRV
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
