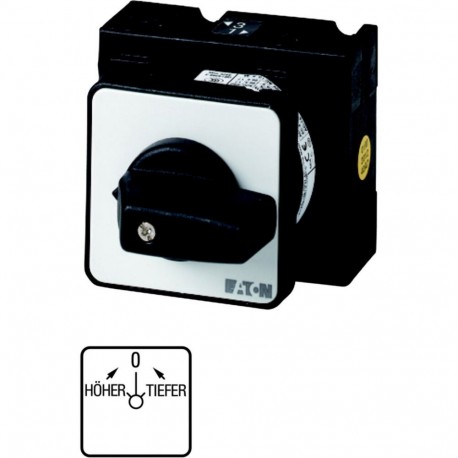

EATON - MOELLER T3-2-8150/E T3-2-8150/E 018367 Y7-18367 EATON ELECTRIC Reversing switches, Contacts: 3, 32 A, front plate: Höher 0 Tiefe.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-8150/E 018367 Y7-18367 EATON ELECTRIC Reversing switches, Contacts: 3, 32 A, front plate: Höher 0 Tiefe..

T3-2-8150/E

018367

Y7-18367

EATON - MOELLER

1 Pcs.

Reversing switches, Contacts: 3, 32 A, front plate: Höher>0 3-pole inverter switch 32 A Indicator plate: Höher>0 Eaton Moeller® series T3 Reversing switches, T3, 32 A, flush mounting, 2 contact unit(s), Contacts: 3, 45 °, maintained, With 0 (Off) position, with spring-return from both directions to 0, Höher>0 Reversing switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 3, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, with spring-return from both directions to 0, front plate: Höher>0

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T3-2-8150/E is an on-off switch designed to manually interrupt or establish electrical connectivity within machine control architecture. Panel-mounted control switches ensure secure isolation and dependable operation across diverse industrial automation environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: On/Off switch
  • Number of poles: 2
  • With zero (off) position: Yes
  • With retraction in 0-position: Yes
  • Rated permanent current Iu: 32 A
  • Rated operation current Ie at AC-3, 400 V: 23.7 A
  • Rated operation power at AC-3, 400 V: 12 kW
  • Degree of protection (IP), front side: IP65
  • Degree of protection (NEMA), front side: 12
  • Suitable for floor mounting: No
  • Suitable for front mounting: Yes
  • Suitable for distribution board installation: No
  • Suitable for intermediate mounting: No
  • Complete device in housing: No
  • Housing material: Plastic
  • Type of control element: Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Reversing switch
Catalog Number
018367
Model Code
T3-2-8150/E
EAN
4015080183679
Product Length/Depth
91 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.172 kg
Certifications
VDE 0660
CE
CSA File No.: 012528
UL File No.: E36332
UL 60947-4-1
IEC/EN 60947
IEC/EN 60947-3
CSA Class No.: 3211-05
CSA-C22.2 No. 94
UL Category Control No.: NLRV
UL
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
CSA
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
