> EATON - MOELLER > Disconnectors and Cam Switches > 003071

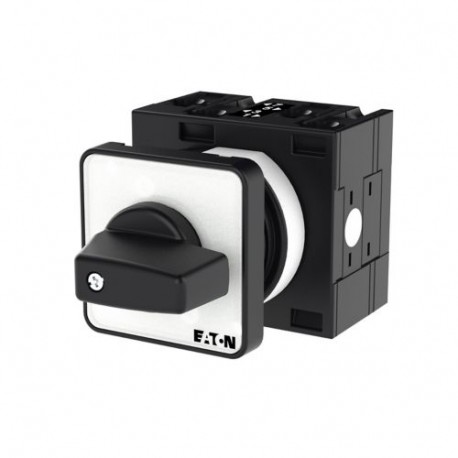

EATON - MOELLER T3-2-8060/E T3-2-8060/E 003071 Y7-3071 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: 0-1-0-1, 90 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-8060/E 003071 Y7-3071 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: 0-1-0-1, 90 °,..

T3-2-8060/E

003071

Y7-3071

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 32 A, front plate: 0-1-0-1, 90 °, maintained, flush mounting Switch 4-pole 32 A Indicator plate: 0-1-0-1 90° Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, flush mounting, 2 contact unit(s), Contacts: 4, 90 °, maintained, With 0 (Off) position, 0-1-0-1, Design number 8060 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, With 0 (Off) position, 2 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: 0-1-0-1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
003071
Model Code
T3-2-8060/E
EAN
4015080030713
Product Length/Depth
91 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.172 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
CE
IEC/EN 60947
CSA Class No.: 3211-05
VDE 0660
UL Category Control No.: NLRV
UL
CSA-C22.2 No. 94
UL 60947-4-1
IEC/EN 60204
CSA File No.: 012528
CSA
IEC/EN 60947-3
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 003071 Low-voltage industrial controls and switchgear (EC002611)
Feature Name Feature Value
Type of switch (EF003496) Reverser
Number of poles (EF001391) 2
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated permanent current Iu (EF001389) 32 A
Number of switch positions (EF000231) 3
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) No
Device construction (EF008240) Built-in device
Width in number of modular spacings (EF002950) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Type of control element (EF006976) Toggle
Front shield size (EF007176) 48x48 mm
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
