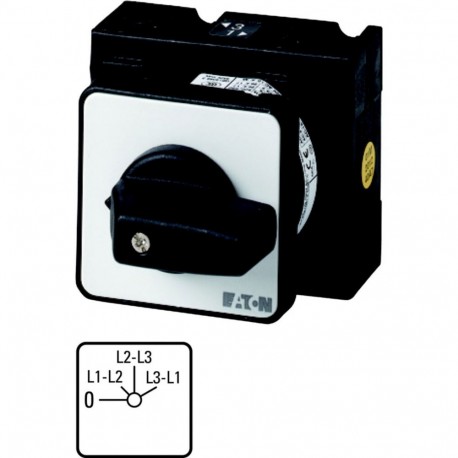

EATON - MOELLER T3-2-15920/E T3-2-15920/E 018205 Y7-18205 EATON ELECTRIC Voltmeter selector switches, Contacts: 4, 32 A, 3 x phase-phase,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-15920/E 018205 Y7-18205 EATON ELECTRIC Voltmeter selector switches, Contacts: 4, 32 A, 3 x phase-phase,..

T3-2-15920/E

018205

Y7-18205

EATON - MOELLER

1 Pcs.

Voltmeter selector switches, Contacts: 4, 32 A, 3 x phase-phase, front plate: 0-Phase/Phase, 45 °, maintained, flush mounting Voltmeter Selector Switch 4 Pole 32 A 3 x Phase-Phase Plate Eaton Moeller® series T3 Voltmeter selector switches, T3, 32 A, flush mounting, 2 contact unit(s), Contacts: 4, 45 °, maintained, With 0 (Off) position, 0-Phase/Phase, Design number 15920 Cam switch according to IEC/EN60947, size T3, installation form, front plate 48x48, degree of protection Front IP65 with black thumb grip, rated uninterrupted current Iu 32A, rated operating voltage Ue 690V, deliverable accessories according to catalog information cam switch T

Automation > Voltmeter selector switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller T3-2-15920/E voltmeter selector switch is a manual control device utilized in industrial electrical panels to monitor voltage across different phases. Operators turn the rotary mechanism to switch the meter input between various lines, enabling safe and organized system diagnostics without requiring multiple permanent meters. Contact pricing, availability and lead time per enquiry through an RFQ.

  • Measurement between phases possible (EF001145): Yes
  • With zero (off) position (EF001416): Yes
  • Device construction (EF008240): Front installation
  • Modular version (EF001126): No
  • With control element (EF001538): Yes
  • Degree of protection (IP) (EF005474): IP65
  • Degree of protection (NEMA) (EF011959): 12

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Voltmeter selector switch
Catalog Number
018205
Model Code
T3-2-15920/E
EAN
4015080182054
Product Length/Depth
91 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.172 kg
Certifications
CSA File No.: 012528
CE
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
UL
IEC/EN 60947
UL File No.: E36332
UL Category Control No.: NLRV
UL 60947-4-1
IEC/EN 60947-3
CSA-C22.2 No. 94
CSA Class No.: 3211-05
VDE 0660
CSA
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
