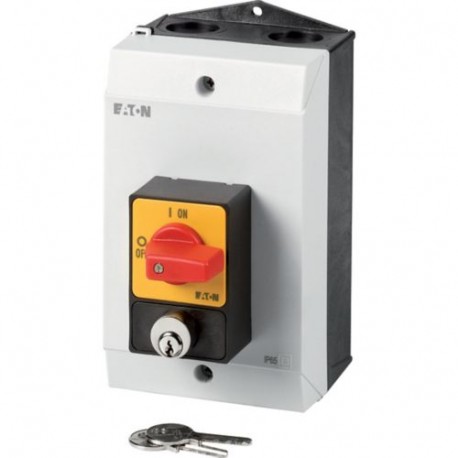

EATON - MOELLER T3-2-1/I2/SVA(S)-RT T3-2-1/I2/SVA(S)-RT 207174 Y7-207174 EATON ELECTRIC Panic switches, 3 pole, 32 A, Cylinder lock SVA, front p.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-1/I2/SVA(S)-RT 207174 Y7-207174 EATON ELECTRIC Panic switches, 3 pole, 32 A, Cylinder lock SVA, front p..

T3-2-1/I2/SVA(S)-RT

207174

Y7-207174

EATON - MOELLER

1 Pcs.

Panic switches, 3 pole, 32 A, Cylinder lock SVA, front plate 0-1, 90 °, maintained, surface mounting, P T3-2-1/I2/SVA(S)-RT Eaton Moeller® series T3 Panic switches, T3, 32 A, surface mounting, 3 pole, with red thumb grip and yellow front plate, Cylinder lock SVA Panic switch, Product range: Switch with locking mechanism, Part group reference: T3, Stop Function: Emergency switching off function, with red thumb grip and yellow front plate, Information about equipment supplied: with two keys, 3 pole, locking arrangement: Cylinder lock SVA, Notes: If the key is withdrawn in position 1 the switch can be switched off but not on again without the key., Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 2 contact unit(s) , Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Panic switch
Catalog Number
207174
Model Code
T3-2-1/I2/SVA(S)-RT
EAN
4015082071745
Product Length/Depth
181 mm
Product Height
107 mm
Product Width
100 mm
Product Weight
0.484 kg
Certifications
IEC/EN 60947
IEC/EN 60204
VDE 0660
IEC/EN 60947-3

ETIM for 207174 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) No
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) Yes
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 32 A
Rated permanent current at AC-23, 400 V (EF011777) 32 A
Rated permanent current at AC-21, 400 V (EF009165) 32 A
Rated operation power at AC-3, 400 V (EF001364) 11 kW
Rated short-time withstand current lcw (EF007050) 0.65 kA
Rated operation power at AC-23, 400 V (EF007027) 15 kW
Switching power at 400 V (EF009166) 15 kW
Conditioned rated short-circuit current Iq (EF001444) 1 kA
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Complete device in housing
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Red
Type of control element (EF006976) Short thumb-grip
Interlockable (EF006281) Yes
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 100 mm
Height (EF000040) 107 mm
Depth (EF000049) 181 mm
