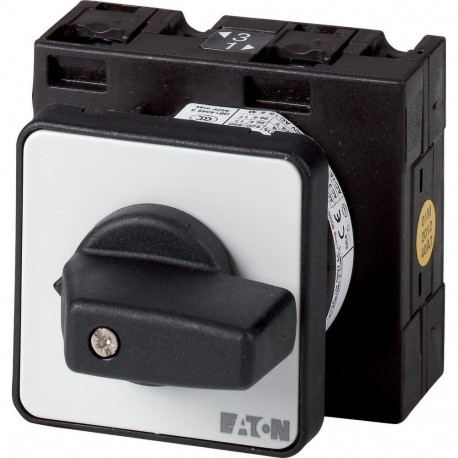

EATON - MOELLER T3-10-SOND*/EZ T3-10-SOND*/EZ 907881 Y7-907881 EATON ELECTRIC Non-standard switch, T3, 32 A, centre mounting, 10 contact un.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-10-SOND*/EZ 907881 Y7-907881 EATON ELECTRIC Non-standard switch, T3, 32 A, centre mounting, 10 contact un..

T3-10-SOND*/EZ

907881

Y7-907881

EATON - MOELLER

10 Pcs.

Non-standard switch, T3, 32 A, centre mounting, 10 contact unit(s) T3-10-SOND*/EZ Eaton Moeller® series T3 Non-standard switch, T3, 32 A, centre mounting, 10 contact unit(s) Non-standard switch, Product range: Non-standard switch, Part group reference: T3, Notes: customized version according to form, Degree of Protection: Front IP65, Design: center mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 10 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller non-standard switch, identified by part number T3-10-SOND*/EZ, is tailored for specialized switching and circuit control configurations within industrial automation systems. Such customized switches route complex control signals and manage power pathways in bespoke setups.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Non-standard switch
Catalog Number
907881
Model Code
T3-10-SOND*/EZ
Product Length/Depth
205 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.492 kg
Certifications
IEC/EN 60204
VDE 0660
IEC/EN 60947-3
IEC/EN 60947
