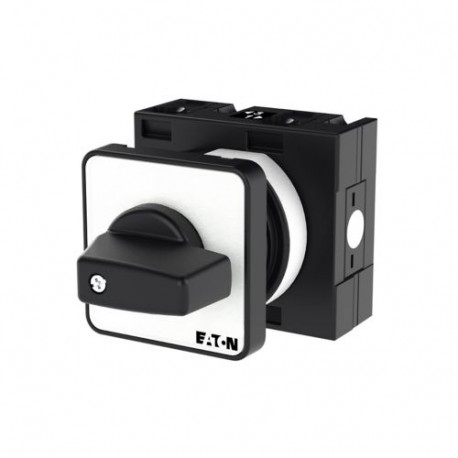

EATON - MOELLER T3-1-8310/E T3-1-8310/E 017323 Y7-17323 EATON ELECTRIC Step switches, Contacts: 2, 32 A, front plate: 0-2, 45 °, maintai.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-1-8310/E 017323 Y7-17323 EATON ELECTRIC Step switches, Contacts: 2, 32 A, front plate: 0-2, 45 °, maintai..

T3-1-8310/E

017323

Y7-17323

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 2, 32 A, front plate: 0-2, 45 °, maintained, flush mounting Step switch 2 poles 32 A Indicator plate: 0-2 45° Eaton Moeller® series T3 Step switches, T3, 32 A, flush mounting, 1 contact unit(s), Contacts: 2, 45 °, maintained, With 0 (Off) position, 0-2, Design number 8310 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, 1 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: 0-2

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

T3-1-8310/E 017323 Y7-17323 EATON ELECTRIC Step switches, Contacts: 2, 32 A, front plate: 0-2, 45 °, maintai.. is a specialized step switch deployed in electrical switchgear to manually toggle through discrete circuit stages or process steps. Technicians rely on these modular switches to handle multi-step load shifting and sequence control in automation systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Step switch
Catalog Number
017323
Model Code
T3-1-8310/E
EAN
4015080173236
Product Length/Depth
79 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.11 kg
Certifications
VDE 0660
CSA-C22.2 No. 94
UL File No.: E36332
IEC/EN 60204
UL 60947-4-1
UL Category Control No.: NLRV
UL
CSA
CSA File No.: 012528
CE
CSA Class No.: 3211-05
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
