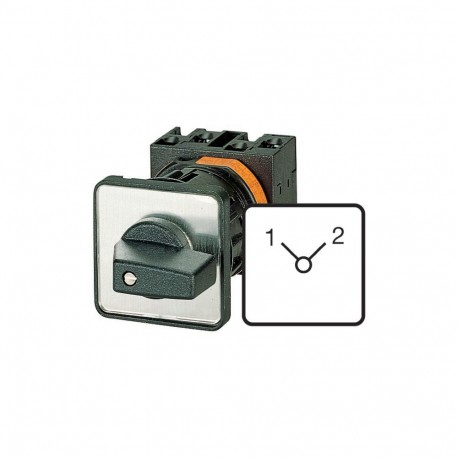

T3-1-8220/EZ 001018 Y7-1018 EATON ELECTRIC Changeoverswitches, Contacts: 2, 32 A, front plate: 1-2, 90 °, ma..
T3-1-8220/EZ
001018
Y7-1018
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller changeover switch (T3-1-8220/EZ) provides a reliable manual switching interface designed to route currents between different operational circuits without an intermediate off position. Panel builders incorporate these devices to manage continuous operational transitions securely.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model: Reverser
- Number of poles: 1
- With zero (off) position: No
- With retraction in 0-position: No
- Rated permanent current Iu: 32 A
- Rated operation current Ie at AC-3, 400 V: 23.7 A
- Rated operation power at AC-3, 400 V: 12 kW
- Degree of protection (IP), front side: IP65
- Degree of protection (NEMA), front side: 12
- Suitable for floor mounting: No
- Suitable for front mounting: Yes
- Suitable for distribution board installation: No
- Suitable for intermediate mounting: No
- Complete device in housing: No
- Housing material: Plastic
- Type of control element: Short thumb-grip
More info
▲General specifications
UL File No.: E36332
IEC/EN 60947
UL
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
CSA
CSA-C22.2 No. 94
IEC/EN 60204
VDE 0660
IEC/EN 60947-3
CE
CSA Class No.: 3211-05
UL Category Control No.: NLRV
