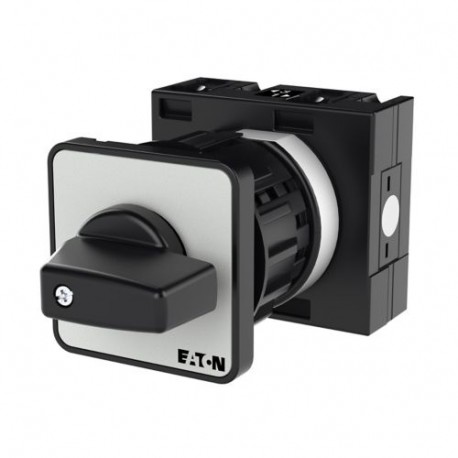

EATON - MOELLER T3-1-8214/EZ T3-1-8214/EZ 001073 Y7-1073 EATON ELECTRIC Changeoverswitches, Contacts: 2, 32 A, front plate: 2 0 1, 45 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-1-8214/EZ 001073 Y7-1073 EATON ELECTRIC Changeoverswitches, Contacts: 2, 32 A, front plate: 2 0 1, 45 °, ..

T3-1-8214/EZ

001073

Y7-1073

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 2, 32 A, front plate: 2>0<1, 45 °, momentary, centre mounting Switch 2-pole switch 32 A Indicator plate: 2>0<1 45° Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, centre mounting, 1 contact unit(s), Contacts: 2, 45 °, momentary, With 0 (Off) position, with spring-return from both directions to 0, 2>0<1, Design number 8214 Changeover switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, with spring-return from both directions to 0, front plate: 2>0<1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number T3-1-8214/EZ functions as a specialized changeoverswitch designed for routing control and signal pathways within automated industrial systems. These manual switching elements direct circuit connectivity to alternate branches based on operator input.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 1
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 12 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
001073
Model Code
T3-1-8214/EZ
EAN
4015080010739
Product Length/Depth
101 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.144 kg
Certifications
CE
UL 60947-4-1
CSA-C22.2 No. 94
UL
UL File No.: E36332
VDE 0660
CSA Class No.: 3211-07
CSA-C22.2 No. 60947-4-1-14
CSA File No.: 012528
IEC/EN 60947
CSA
UL Category Control No.: NLRV
IEC/EN 60947-3
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
