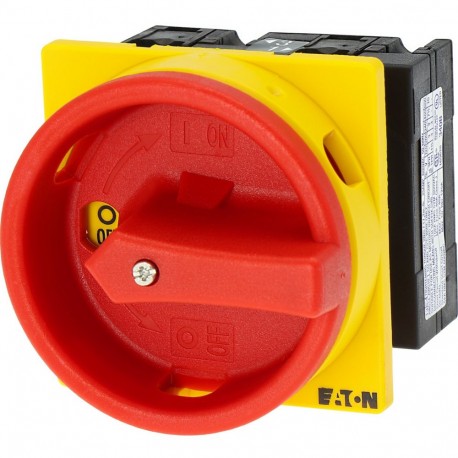

EATON - MOELLER T3-1-102/EA/SVB T3-1-102/EA/SVB 014374 Y7-14374 EATON ELECTRIC Main switch, 2 pole, 32 A, Emergency-Stop function, 90 °, Loc.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-1-102/EA/SVB 014374 Y7-14374 EATON ELECTRIC Main switch, 2 pole, 32 A, Emergency-Stop function, 90 °, Loc..

T3-1-102/EA/SVB

014374

Y7-14374

EATON - MOELLER

1 Pcs.

Main switch, 2 pole, 32 A, Emergency-Stop function, 90 °, Lockable in the 0 (Off) position, flush mounting General Switch 2 poles 32 A 90° Flush mount Handle Eaton Moeller® series T3 Main switch, T3, 32 A, flush mounting, 1 contact unit(s), 2 pole, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T3, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 2 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller main switch acts as an essential safety disconnect device in industrial control systems, enabling operators to quickly interrupt power during emergencies. This Eaton Moeller T3-1-102/EA/SVB model is built with lockable emergency-stop functionality and a compact two-pole profile.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Number of poles (EF001391): 2
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Main switch
Catalog Number
014374
Model Code
T3-1-102/EA/SVB
EAN
4015080143741
Product Length/Depth
104 mm
Product Height
74 mm
Product Width
65 mm
Product Weight
0.168 kg
Certifications
CSA-C22.2 No. 94
IEC/EN 60947
IEC/EN 60947-3
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
CSA
UL File No.: E36332
CE
UL
IEC/EN 60204
VDE 0660
CSA File No.: 012528
UL 60947-4-1
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
