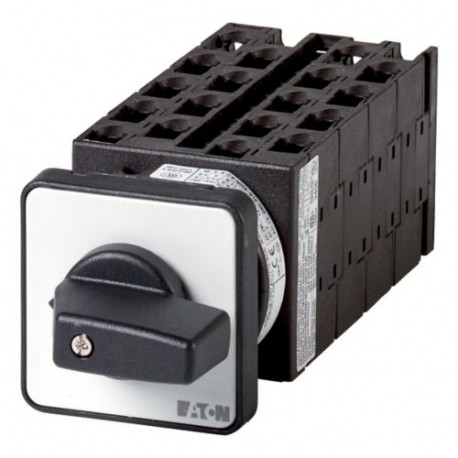

EATON - MOELLER T0-9-8365/E T0-9-8365/E 016298 Y7-16298 EATON ELECTRIC Changeoverswitches, Contacts: 18, 20 A, front plate: 1-0-2, 60 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-9-8365/E 016298 Y7-16298 EATON ELECTRIC Changeoverswitches, Contacts: 18, 20 A, front plate: 1-0-2, 60 °,..

T0-9-8365/E

016298

Y7-16298

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 18, 20 A, front plate: 1-0-2, 60 °, maintained, flush mounting Switch Switch 18 poles 20 A Indicator plate: 1-0-2 60° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, flush mounting, 9 contact unit(s), Contacts: 18, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8365 Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 18, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 9 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for directional motor control and source selection, the T0-9-8365/E Eaton Moeller changeoverswitch provides reliable manual routing across multi-pole configurations. Changeover switches are broadly utilized in industrial machinery to alternate active circuits or reverse operational parameters safely.

Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 9
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
016298
Model Code
T0-9-8365/E
EAN
4015080162988
Product Length/Depth
152 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.232 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
CE
CSA Class No.: 3211-05
CSA File No.: 012528
CSA-C22.2 No. 94
UL
CSA
UL 60947-4-1
IEC/EN 60204
IEC/EN 60947
VDE 0660
IEC/EN 60947-3
UL Category Control No.: NLRV
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
