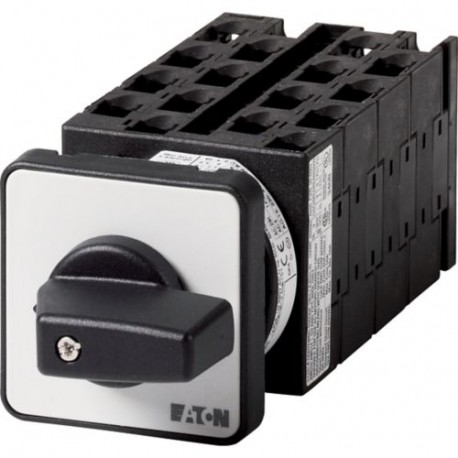

EATON - MOELLER T0-8-SOND*/E T0-8-SOND*/E 907772 Y7-907772 EATON ELECTRIC Non-standard switch, T0, 20 A, flush mounting, 8 contact unit(s) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-8-SOND*/E 907772 Y7-907772 EATON ELECTRIC Non-standard switch, T0, 20 A, flush mounting, 8 contact unit(s)

T0-8-SOND*/E

907772

Y7-907772

EATON - MOELLER

10 Pcs.

Non-standard switch, T0, 20 A, flush mounting, 8 contact unit(s) T0-8-SOND*/E Eaton Moeller® series T0 Non-standard switch, T0, 20 A, flush mounting, 8 contact unit(s) Non-standard switch, Product range: Non-standard switch, Part group reference: T0, Notes: customized version according to form, Degree of Protection: Front IP65, Design: flush mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 8 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-8-SOND*/E non-standard switch offers adaptable multi-contact circuit switching for specialized industrial automation layouts. Flush-mounting rotary switches integrate cleanly into control desks and panels.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Non-standard switch
Catalog Number
907772
Model Code
T0-8-SOND*/E
Product Length/Depth
143 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.208 kg
Certifications
IEC/EN 60947-3
VDE 0660
IEC/EN 60204
IEC/EN 60947

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
