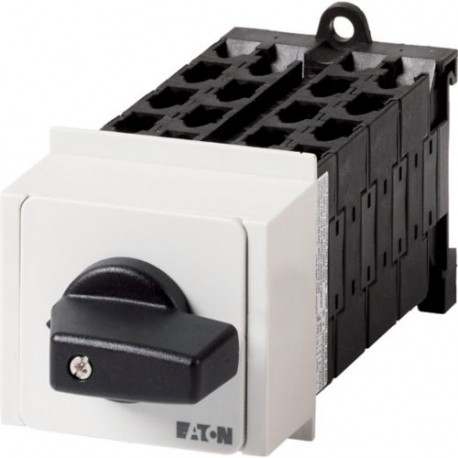

EATON - MOELLER T0-8-8477/IVS T0-8-8477/IVS 016174 Y7-16174 EATON ELECTRIC Step switches, Contacts: 16, 20 A, front plate: 1-4, 45 °, main.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-8-8477/IVS 016174 Y7-16174 EATON ELECTRIC Step switches, Contacts: 16, 20 A, front plate: 1-4, 45 °, main..

T0-8-8477/IVS

016174

Y7-16174

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 16, 20 A, front plate: 1-4, 45 °, maintained, service distribution board mounting Step switch 16 poles 20 A Indicator plate: 1-4 45° Eaton Moeller® series T0 Step switches, T0, 20 A, service distribution board mounting, 8 contact unit(s), Contacts: 16, 45 °, maintained, Without 0 (Off) position, 1-4, Design number 8477 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 16, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 45 °, Switching performance: maintained, Without 0 (Off) position, 8 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 1-4

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-8-8477/IVS is a step switch suitable for distribution boards and modular industrial enclosures. Multi-pole rotary switches are typically relied upon to govern complex electrical loads and direct power across discrete phases.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 4
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 4
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 4
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
016174
Model Code
T0-8-8477/IVS
EAN
4015080161745
Product Length/Depth
149 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.279 kg
Certifications
IEC/EN 60947
UL File No.: E36332
IEC/EN 60204
IEC/EN 60947-3
VDE 0660
CSA
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
CSA-C22.2 No. 94
UL 60947-4-1
CE
CSA Class No.: 3211-05
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
