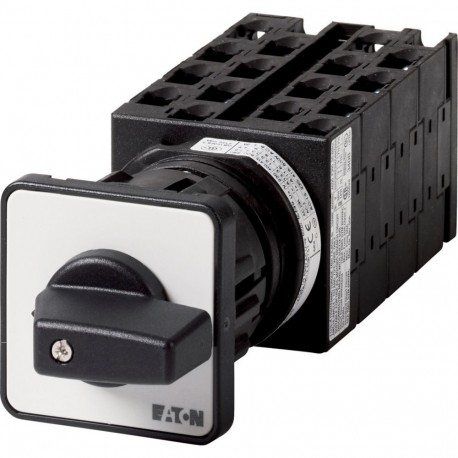

EATON - MOELLER T0-8-8372/EZ T0-8-8372/EZ 034102 Y7-34102 EATON ELECTRIC Changeoverswitches, Contacts: 16, 20 A, front plate: 1-2, 90 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-8-8372/EZ 034102 Y7-34102 EATON ELECTRIC Changeoverswitches, Contacts: 16, 20 A, front plate: 1-2, 90 °, ..

T0-8-8372/EZ

034102

Y7-34102

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 16, 20 A, front plate: 1-2, 90 °, maintained, centre mounting Switch Switch 16 pole 20 A Indicator plate: 1-2 90° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, centre mounting, 8 contact unit(s), Contacts: 16, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 8372 Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 16, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 8 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed with an extensive contact arrangement, the Eaton Moeller T0-8-8372/EZ changeoverswitch handles multi-pole switching tasks in intricate control systems. These high-contact rotary devices are essential when a single manual actuator must manage numerous parallel circuits simultaneously. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 8
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
034102
Model Code
T0-8-8372/EZ
EAN
4015080341024
Product Length/Depth
163 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.288 kg
Certifications
CSA File No.: 012528
IEC/EN 60947
UL File No.: E36332
CSA Class No.: 3211-05
IEC/EN 60947-3
UL Category Control No.: NLRV
UL 60947-4-1
CE
CSA
UL
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
VDE 0660
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
