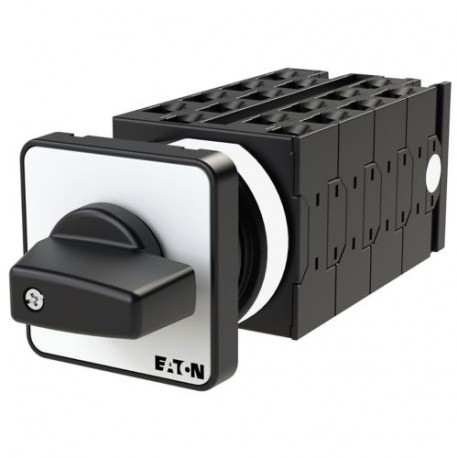

EATON - MOELLER T0-8-8352/E T0-8-8352/E 016134 Y7-16134 EATON ELECTRIC On-Off switch, 16-pole, 20 A, 90 °, flush mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-8-8352/E 016134 Y7-16134 EATON ELECTRIC On-Off switch, 16-pole, 20 A, 90 °, flush mounting

T0-8-8352/E

016134

Y7-16134

EATON - MOELLER

1 Pcs.

On-Off switch, 16-pole, 20 A, 90 °, flush mounting ON-OFF Disconnect Switch 16 poles 20 A 90° Flush Mount Eaton Moeller® series T0 On-Off switch, T0, 20 A, flush mounting, 8 contact unit(s), 16-pole, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: T0, with black thumb grip and front plate, 16-pole, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 8 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The T0-8-8352/E 016134 Y7-16134 EATON ELECTRIC On-Off switch, 16-pole, 20 A, 90 °, flush mounting functions as a multi-pole rotary control switch that directs complex circuit configurations within industrial control panels. Control and cam switches of this sort facilitate manual selection of operational modes or power states. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 1000 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA
  • Number of poles (EF001391): 16
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On-off switch
Catalog Number
016134
Model Code
T0-8-8352/E
EAN
4015080161349
Product Length/Depth
143 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.208 kg
Certifications
CSA
CSA File No.: 012528
UL 60947-4-1
IEC/EN 60947-3
VDE 0660
CE
IEC/EN 60947
UL
CSA-C22.2 No. 94
UL Category Control No.: NLRV
UL File No.: E36332
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
