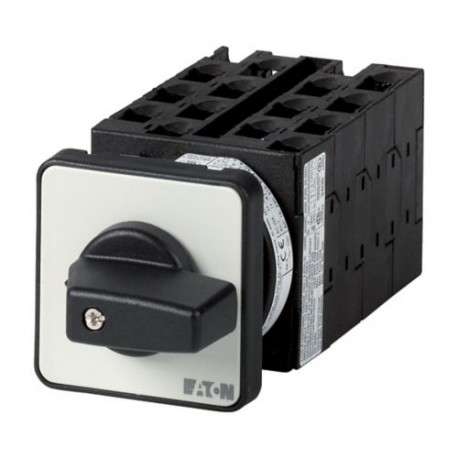

EATON - MOELLER T0-7-SOND*/E T0-7-SOND*/E 907771 Y7-907771 EATON ELECTRIC Non-standard switch, T0, 20 A, flush mounting, 7 contact unit(s) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-7-SOND*/E 907771 Y7-907771 EATON ELECTRIC Non-standard switch, T0, 20 A, flush mounting, 7 contact unit(s)

T0-7-SOND*/E

907771

Y7-907771

EATON - MOELLER

10 Pcs.

Non-standard switch, T0, 20 A, flush mounting, 7 contact unit(s) T0-7-SOND*/E Eaton Moeller® series T0 Non-standard switch, T0, 20 A, flush mounting, 7 contact unit(s) Non-standard switch, Product range: Non-standard switch, Part group reference: T0, Notes: customized version according to form, Degree of Protection: Front IP65, Design: flush mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 7 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The T0-7-SOND*/E 907771 Y7-907771 EATON ELECTRIC Non-standard switch, T0, 20 A, flush mounting, 7 contact unit(s) from Eaton Moeller is a versatile rotary control component utilized for custom circuit routing and specialized switching tasks in industrial control systems. Engineers specify custom control switches in specialized automation machinery to manage complex multi-step operational sequences and custom electrical configurations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch: No
  • Version as maintenance-/service switch: No
  • Version as safety switch: No
  • Version as emergency stop installation: No
  • Version as reversing switch: No
  • Number of switches: 1
  • Rated operating voltage: EF001435
  • Rated permanent current Iu: EF001389
  • Rated permanent current at AC-23, 400 V: EF011777
  • Rated permanent current at AC-21, 400 V: EF009165
  • Rated operation power at AC-3, 400 V: EF001364
  • Rated short-time withstand current lcw: EF007050
  • Rated operation power at AC-23, 400 V: EF007027
  • Switching power at 400 V: EF009166
  • Conditioned rated short-circuit current Iq: EF001444
  • Motor drive optional: EF007386

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Non-standard switch
Catalog Number
907771
Model Code
T0-7-SOND*/E
Product Length/Depth
133 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.184 kg
Certifications
VDE 0660
IEC/EN 60947
IEC/EN 60204
IEC/EN 60947-3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
