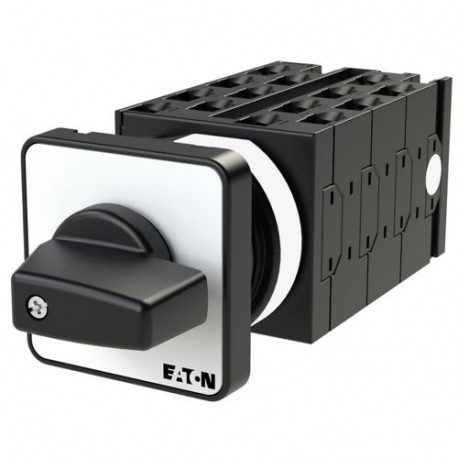

EATON - MOELLER T0-7-8363/E T0-7-8363/E 015998 Y7-15998 EATON ELECTRIC Changeoverswitches, Contacts: 14, 20 A, front plate: 1-0-2, 60 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-7-8363/E 015998 Y7-15998 EATON ELECTRIC Changeoverswitches, Contacts: 14, 20 A, front plate: 1-0-2, 60 °,..

T0-7-8363/E

015998

Y7-15998

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 14, 20 A, front plate: 1-0-2, 60 °, maintained, flush mounting Switch Switch 14 poles 20 A Indicator plate: 1-0-2 60° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, flush mounting, 7 contact unit(s), Contacts: 14, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8363 Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 14, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 7 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller changeover switch (T0-7-8363/E) functions as a robust multi-contact control device engineered to route complex circuit paths and switch active loads manually. Technicians integrate these versatile components into control panels to execute intricate switching sequences reliably.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Reverser
  • Number of poles: 7
  • With zero (off) position: Yes
  • With retraction in 0-position: No
  • Rated permanent current Iu: 20 A
  • Rated operation current Ie at AC-3, 400 V: 11.5 A
  • Rated operation power at AC-3, 400 V: 4 kW
  • Degree of protection (IP), front side: IP65
  • Degree of protection (NEMA), front side: 12
  • Suitable for floor mounting: No
  • Suitable for front mounting: Yes
  • Suitable for distribution board installation: No
  • Suitable for intermediate mounting: No
  • Complete device in housing: No
  • Housing material: Plastic
  • Type of control element: Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
015998
Model Code
T0-7-8363/E
EAN
4015080159988
Product Length/Depth
133 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.184 kg
Certifications
IEC/EN 60204
UL 60947-4-1
UL
CE
CSA Class No.: 3211-05
IEC/EN 60947
CSA
UL File No.: E36332
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
VDE 0660
CSA File No.: 012528
IEC/EN 60947-3
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
