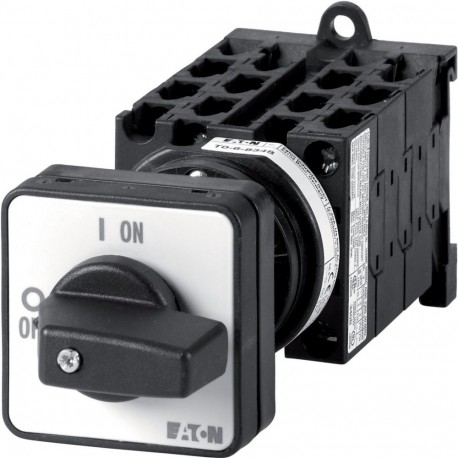

T0-6-SOND*/Z 907844 Y7-907844 EATON ELECTRIC Non-standard switch, T0, 20 A, rear mounting, 6 contact unit(s)
T0-6-SOND*/Z
907844
Y7-907844
EATON - MOELLER
10 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The T0-6-SOND*/Z 907844 Y7-907844 EATON ELECTRIC Non-standard switch, T0, 20 A, rear mounting, 6 contact unit(s) produced by Eaton Moeller operates as a specialized rotary cam switch for custom control and switching applications. Control panel designers use these versatile switches to route complex electrical signals and manage multi-step operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
- Rated permanent current at AC-21, 400 V (EF009165): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated short-time withstand current lcw (EF007050): 0.32 kA
- Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
- Switching power at 400 V (EF009166): 5.5 kW
- Conditioned rated short-circuit current Iq (EF001444): 6 kA
- Motor drive optional (EF007386): No
More info
▲General specifications
IEC/EN 60947-3
VDE 0660
IEC/EN 60204
