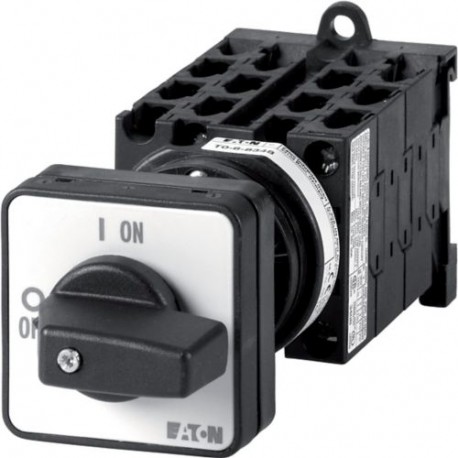

EATON - MOELLER T0-6-8370/Z T0-6-8370/Z 010380 Y7-10380 EATON ELECTRIC Changeoverswitches, Contacts: 12, 20 A, front plate: 1-2, 90 °, m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-6-8370/Z 010380 Y7-10380 EATON ELECTRIC Changeoverswitches, Contacts: 12, 20 A, front plate: 1-2, 90 °, m..

T0-6-8370/Z

010380

Y7-10380

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 12, 20 A, front plate: 1-2, 90 °, maintained, rear mounting Switch Switch 12 poles 20 A Indicator plate: 1-2 90° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, rear mounting, 6 contact unit(s), Contacts: 12, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 8370 Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 12, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller changeover switch, reference T0-6-8370/Z, acts as a manual switching mechanism deployed in industrial automation to redirect electrical pathways or alternate operational modes. These versatile devices are commonly fitted within control cabinets to govern multi-conductor circuits under load.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 6
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
010380
Model Code
T0-6-8370/Z
EAN
4015080103806
Product Length/Depth
166 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.235 kg
Certifications
CSA-C22.2 No. 94
UL 60947-4-1
UL Category Control No.: NLRV
IEC/EN 60947-3
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
UL File No.: E36332
VDE 0660
CSA Class No.: 3211-05
IEC/EN 60204
UL
CE
CSA
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
