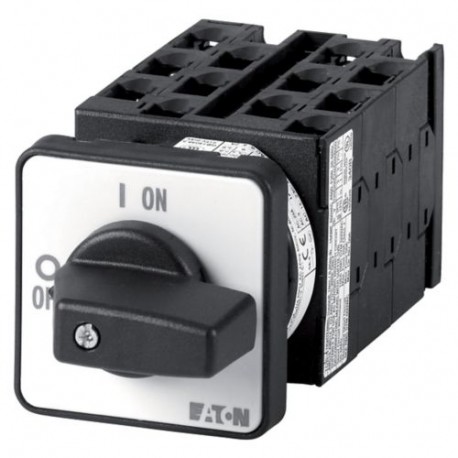

EATON - MOELLER T0-6-8370/E T0-6-8370/E 062577 Y7-62577 EATON ELECTRIC Changeoverswitches, Contacts: 12, 20 A, front plate: 1-2, 90 °, m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-6-8370/E 062577 Y7-62577 EATON ELECTRIC Changeoverswitches, Contacts: 12, 20 A, front plate: 1-2, 90 °, m..

T0-6-8370/E

062577

Y7-62577

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 12, 20 A, front plate: 1-2, 90 °, maintained, flush mounting Switch Switch; 12 poles; 20 A; Indicator plate: 1-2; 90 °; Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, flush mounting, 6 contact unit(s), Contacts: 12, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 8370 Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 12, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller T0-6-8370/E is a changeover switch engineered for directing electrical signals and power paths in automation control panels. Rotary control switches of this category help operators manage multi-circuit routing and equipment operational states efficiently. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Reverser
  • Number of poles: 6
  • With zero (off) position: No
  • With retraction in 0-position: No
  • Rated permanent current Iu: 20 A
  • Rated operation current Ie at AC-3, 400 V: 11.5 A
  • Rated operation power at AC-3, 400 V: 4 kW
  • Degree of protection (IP), front side: IP65
  • Degree of protection (NEMA), front side: 12
  • Suitable for floor mounting: No
  • Suitable for front mounting: Yes
  • Suitable for distribution board installation: No
  • Suitable for intermediate mounting: No
  • Complete device in housing: No
  • Housing material: Plastic
  • Type of control element: Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
062577
Model Code
T0-6-8370/E
EAN
4015080625773
Product Length/Depth
124 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.16 kg
Certifications
UL Category Control No.: NLRV
UL File No.: E36332
CSA File No.: 012528
CSA
CE
CSA-C22.2 No. 94
IEC/EN 60204
IEC/EN 60947-3
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
UL
UL 60947-4-1
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
