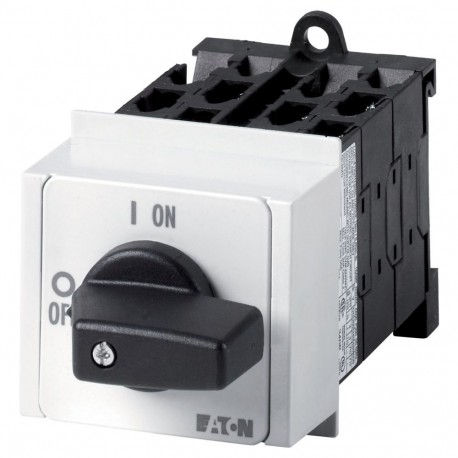

EATON - MOELLER T0-5-SOND*/IVS T0-5-SOND*/IVS 907810 Y7-907810 EATON ELECTRIC Non-standard switch, T0, 20 A, service distribution board mou.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-5-SOND*/IVS 907810 Y7-907810 EATON ELECTRIC Non-standard switch, T0, 20 A, service distribution board mou..

T0-5-SOND*/IVS

907810

Y7-907810

EATON - MOELLER

10 Pcs.

Non-standard switch, T0, 20 A, service distribution board mounting, 5 contact unit(s) T0-5-SOND*/IVS Eaton Moeller® series T0 Non-standard switch, T0, 20 A, service distribution board mounting, 5 contact unit(s) Non-standard switch, Product range: Non-standard switch, Part group reference: T0, Notes: customized version according to form, Degree of Protection: Front IP30, Design: service distribution board mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for service distribution board mounting, the Eaton Moeller T0-5-SOND*/IVS non-standard switch directs complex control logic and manages auxiliary power signals across automation systems. Rotary cam switches are widely integrated into control cabinets to select operational modes or switch multi-circuit configurations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Non-standard switch
Catalog Number
907810
Model Code
T0-5-SOND*/IVS
Product Length/Depth
120 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.205 kg
Certifications
IEC/EN 60204
IEC/EN 60947
VDE 0660
IEC/EN 60947-3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
