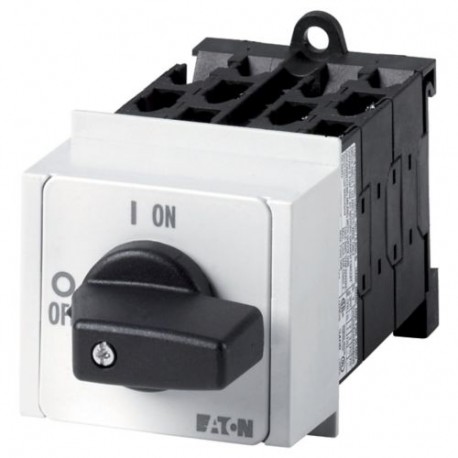

EATON - MOELLER T0-5-8453/IVS T0-5-8453/IVS 034104 Y7-34104 EATON ELECTRIC Reversing multi-speed switches,Contacts 10,20A,2 speeds,2 separ.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-5-8453/IVS 034104 Y7-34104 EATON ELECTRIC Reversing multi-speed switches,Contacts 10,20A,2 speeds,2 separ..

T0-5-8453/IVS

034104

Y7-34104

EATON - MOELLER

1 Pcs.

Reversing multi-speed switches,Contacts 10,20A,2 speeds,2 separate windings,front plate: 2-1-0-1-2, 60 °,maintained, service distribution board mount. Multi-speed switch with 10-pole reversing 20 A 2 speed Eaton Moeller® series T0 Reversing multi-speed switches, T0, 20 A, service distribution board mounting, 5 contact unit(s), Contacts: 10, 60 °, maintained, With 0 (Off) position, 2-1-0-1-2, Design number 8453 Reversing multi-speed switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 10, Degree of Protection: Front IP30, Design: service distribution board mounting, switching function: 2 speeds, 2 separate windings, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 2-1-0-1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Reversing multi-speed switches such as this Eaton Moeller T0-5-8453/IVS component allow operators to control both the rotation direction and speed settings of heavy-duty electric motors. They are integrated into manufacturing machinery where dynamic control of motor output is required.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Pole switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Degree of protection (IP), front side (EF003118): IP30
  • Degree of protection (NEMA), front side (EF011961): 2
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Reversing multi-speed switch
Catalog Number
034104
Model Code
T0-5-8453/IVS
EAN
4015080341048
Product Length/Depth
120 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.205 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
UL File No.: E36332
CE
UL 60947-4-1
IEC/EN 60947
UL
CSA Class No.: 3211-05
VDE 0660
CSA
CSA-C22.2 No. 94
CSA File No.: 012528
IEC/EN 60204
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
