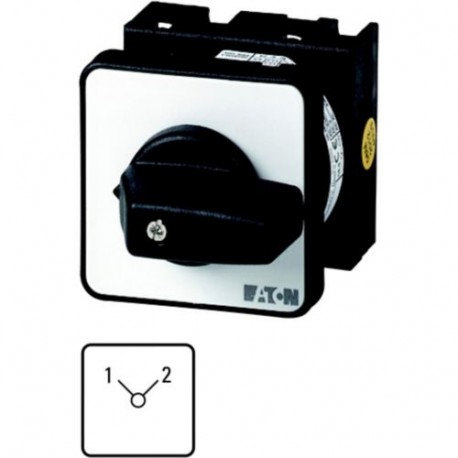

T0-4-8223/E 050712 Y7-50712 EATON ELECTRIC Changeoverswitches, Contacts: 8, 20 A, front plate: 1-2, 90 °, ma..
T0-4-8223/E
050712
Y7-50712
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller changeoverswitches part number T0-4-8223/E is a multi-pole manual switching device designed to alternate electrical connections across complex industrial control circuits. These versatile switches ensure reliable operation when shifting between different power loops or operational sources. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Reverser
- Number of poles (EF001391): 4
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Rated permanent current Iu (EF001389): 20 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
- Rated operation power at AC-3, 400 V (EF001364): 4 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
UL File No.: E36332
IEC/EN 60947-3
UL Category Control No.: NLRV
UL 60947-4-1
CSA
CSA File No.: 012528
CE
CSA-C22.2 No. 94
IEC/EN 60947
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
VDE 0660
