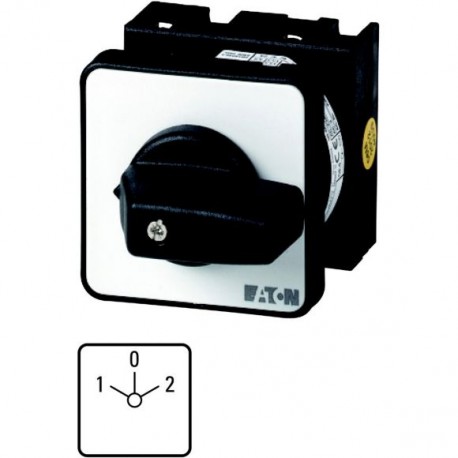

EATON - MOELLER T0-4-8213/Z T0-4-8213/Z 043592 Y7-43592 EATON ELECTRIC Changeoverswitches, Contacts: 8, 20 A, front plate: 1-0-2, 60 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-4-8213/Z 043592 Y7-43592 EATON ELECTRIC Changeoverswitches, Contacts: 8, 20 A, front plate: 1-0-2, 60 °, ..

T0-4-8213/Z

043592

Y7-43592

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 8, 20 A, front plate: 1-0-2, 60 °, maintained, rear mounting Switch Switch. 8 poles. 20 A. Indicator plate: 1-0-2. 60 °. Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, rear mounting, 4 contact unit(s), Contacts: 8, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8213 Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 8, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Changeoverswitches provide manual control for alternating circuit paths and reversing motor directions within electrical distribution assemblies. This specific Eaton Moeller T0-4-8213/Z component enables reliable switching operations across diverse industrial setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 4
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
043592
Model Code
T0-4-8213/Z
EAN
4015080435921
Product Length/Depth
147 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.187 kg
Certifications
IEC/EN 60204
CSA
UL File No.: E36332
VDE 0660
CSA Class No.: 3211-05
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
CE
IEC/EN 60947
UL
UL 60947-4-1
CSA File No.: 012528
UL Category Control No.: NLRV
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
