> EATON - MOELLER > Disconnectors and Cam Switches > 062575

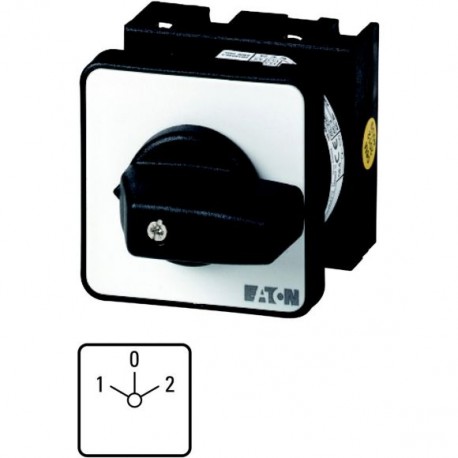

EATON - MOELLER T0-4-8213/EZ T0-4-8213/EZ 062575 Y7-62575 EATON ELECTRIC Changeoverswitches, Contacts: 8, 20 A, front plate: 1-0-2, 60 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-4-8213/EZ 062575 Y7-62575 EATON ELECTRIC Changeoverswitches, Contacts: 8, 20 A, front plate: 1-0-2, 60 °,..

T0-4-8213/EZ

062575

Y7-62575

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 8, 20 A, front plate: 1-0-2, 60 °, maintained, centre mounting Switch Switch; 8 poles; 20 A; Indicator plate: 1-0-2; 60 °; Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, centre mounting, 4 contact unit(s), Contacts: 8, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8213 Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 8, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
062575
Model Code
T0-4-8213/EZ
EAN
4015080625759
Product Length/Depth
125 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.177 kg
Certifications
IEC/EN 60947
CE
UL Category Control No.: NLRV
IEC/EN 60204
UL
VDE 0660
IEC/EN 60947-3
UL File No.: E36332
CSA-C22.2 No. 94
CSA
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
CSA File No.: 012528
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 062575 Low-voltage industrial controls and switchgear (EC001105)
Feature Name Feature Value
Model (EF000010) Reverser
Number of poles (EF001391) 4
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) No
Rated permanent current Iu (EF001389) 20 A
Rated operation current Ie at AC-3, 400 V (EF001392) 11.5 A
Rated operation power at AC-3, 400 V (EF001364) 4 kW
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Housing material (EF001596) Plastic
Type of control element (EF006976) Short thumb-grip
Type of electrical connection of main circuit (EF006819) Screw connection

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
