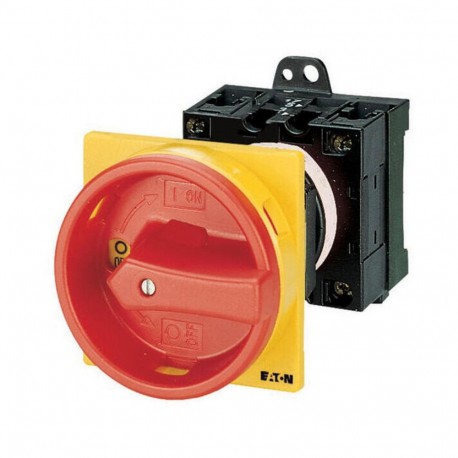

T0-4-15682/V/SVB 024638 Y7-24638 EATON ELECTRIC Main switch, 6 pole + 1 N/O + 1 N/C, 20 A, Emergency-Stop fu..
T0-4-15682/V/SVB
024638
Y7-24638
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller T0-4-15682/V/SVB main switch operates as a multi-pole control device designed to safely disconnect electrical loads and support emergency-stop functions in industrial environments. These switches are widely installed in machine tools, HVAC systems, and control panels to interrupt power during servicing or faults. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Rated permanent current at AC-21, 400 V (EF009165): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated short-time withstand current lcw (EF007050): 0.32 kA
- Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
- Switching power at 400 V (EF009166): 5.5 kW
- Conditioned rated short-circuit current Iq (EF001444): 6 kA
- Number of poles (EF001391): 6
- Motor drive optional (EF007386): No
More info
▲General specifications
CSA-C22.2 No. 94
CSA
VDE 0660
UL 60947-4-1
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
UL Category Control No.: NLRV
CE
IEC/EN 60947-3
CSA Class No.: 3211-05
IEC/EN 60947
UL
