T0-3-8216/EZ 086307 Y7-86307 EATON ELECTRIC Industrial Automation Bussines and Industrial Control Devices Sw..
T0-3-8216/EZ
086307
Y7-86307
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

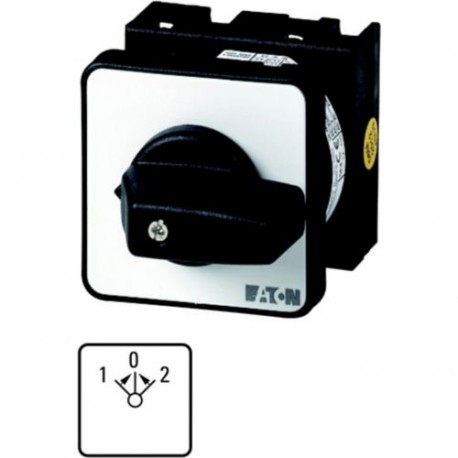

Industrial control devices such as the Eaton Moeller T0-3-8216/EZ reverser are utilized to change the rotational direction of electric motors by swapping phase connections safely. This control switch integrates into control panels to provide reliable manual management of automated equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Reverser
- Number of poles (EF001391): 3
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): Yes
- Rated permanent current Iu (EF001389): 20 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
- Rated operation power at AC-3, 400 V (EF001364): 4 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
UL 60947-4-1
UL File No.: E36332
CSA File No.: 012528
IEC/EN 60204
CE
CSA Class No.: 3211-05
IEC/EN 60947
UL Category Control No.: NLRV
CSA-C22.2 No. 94
UL
VDE 0660
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
