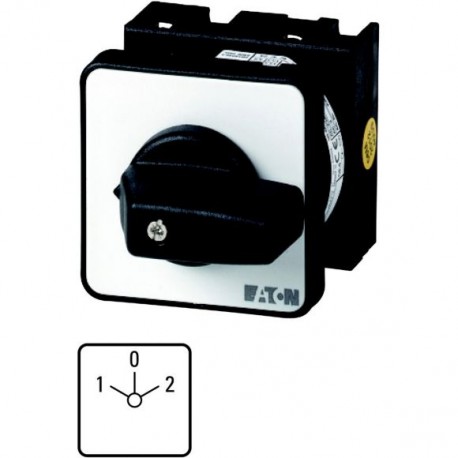

EATON - MOELLER T0-3-8212/EZ T0-3-8212/EZ 057829 Y7-57829 EATON ELECTRIC Changeoverswitches, Contacts: 6, 20 A, front plate: 1-0-2, 60 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-8212/EZ 057829 Y7-57829 EATON ELECTRIC Changeoverswitches, Contacts: 6, 20 A, front plate: 1-0-2, 60 °,..

T0-3-8212/EZ

057829

Y7-57829

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 6, 20 A, front plate: 1-0-2, 60 °, maintained, centre mounting Switch 6-pole switch 20 A Indicator plate: 1-0-2 60° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, centre mounting, 3 contact unit(s), Contacts: 6, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8212 Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-3-8212/EZ changeoverswitches are manual control devices used to route electrical signals and power between multiple distinct circuits in industrial control panels. These mechanical switching components allow operators to safely select alternate operational paths or reversal states within a machine control layout. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
057829
Model Code
T0-3-8212/EZ
EAN
4015080578291
Product Length/Depth
115 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.153 kg
Certifications
CSA
VDE 0660
UL 60947-4-1
UL File No.: E36332
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
CE
CSA Class No.: 3211-05
CSA-C22.2 No. 94
IEC/EN 60947
CSA File No.: 012528
IEC/EN 60947-3
IEC/EN 60204
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
