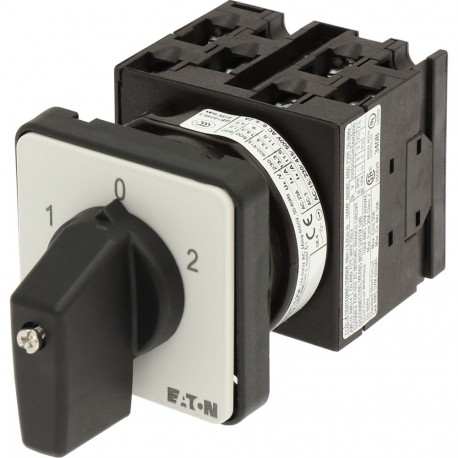

EATON - MOELLER T0-3-8212/E T0-3-8212/E 029353 Y7-29353 EATON ELECTRIC Changeoverswitches, Contacts: 6, 20 A, front plate: 1-0-2, 60 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-8212/E 029353 Y7-29353 EATON ELECTRIC Changeoverswitches, Contacts: 6, 20 A, front plate: 1-0-2, 60 °, ..

T0-3-8212/E

029353

Y7-29353

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 6, 20 A, front plate: 1-0-2, 60 °, maintained, flush mounting Switch 6-pole switch 20 A Indicator plate: 1-0-2 60° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, flush mounting, 3 contact unit(s), Contacts: 6, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8212 Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T0-3-8212/E changeover switch is designed to toggle electrical supplies between multiple circuits or operational modes within automated machine setups. These robust selector units guarantee secure manual intervention when processes demand alternate pathways.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Reverser
  • Number of poles: 3
  • With zero (off) position: Yes
  • With retraction in 0-position: No
  • Rated permanent current Iu: 20 A
  • Rated operation current Ie at AC-3, 400 V: 11.5 A
  • Rated operation power at AC-3, 400 V: 4 kW
  • Degree of protection (IP), front side: IP65
  • Degree of protection (NEMA), front side: 12
  • Suitable for floor mounting: No
  • Suitable for front mounting: Yes
  • Suitable for distribution board installation: No
  • Suitable for intermediate mounting: No
  • Complete device in housing: No
  • Housing material: Plastic
  • Type of control element: Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
029353
Model Code
T0-3-8212/E
EAN
4015080293538
Product Length/Depth
95 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.121 kg
Certifications
VDE 0660
CSA
UL 60947-4-1
CSA File No.: 012528
UL
CE
UL File No.: E36332
IEC/EN 60204
CSA Class No.: 3211-05
IEC/EN 60947-3
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
