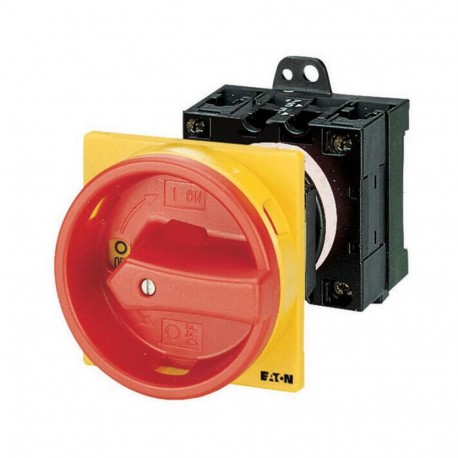

T0-3-15683/V/SVB 015634 Y7-15634 EATON ELECTRIC Main switch, 3 pole + 2 N/O + 1 N/C, 20 A, Emergency-Stop fu..
T0-3-15683/V/SVB
015634
Y7-15634
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller T0-3-15683/V/SVB is a main switch built to manage secure power disconnection and emergency stop functions in industrial automation lines. This device type is mounted within control panels to provide operators with accessible and reliable isolation of live electrical circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Rated permanent current at AC-21, 400 V (EF009165): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated short-time withstand current lcw (EF007050): 0.32 kA
- Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
- Switching power at 400 V (EF009166): 5.5 kW
- Conditioned rated short-circuit current Iq (EF001444): 6 kA
- Number of poles (EF001391): 3
More info
▲General specifications
IEC/EN 60947
UL 60947-4-1
CE
CSA-C22.2 No. 94
CSA
CSA Class No.: 3211-05
IEC/EN 60204
VDE 0660
IEC/EN 60947-3
UL File No.: E36332
UL Category Control No.: NLRV
UL
CSA File No.: 012528
