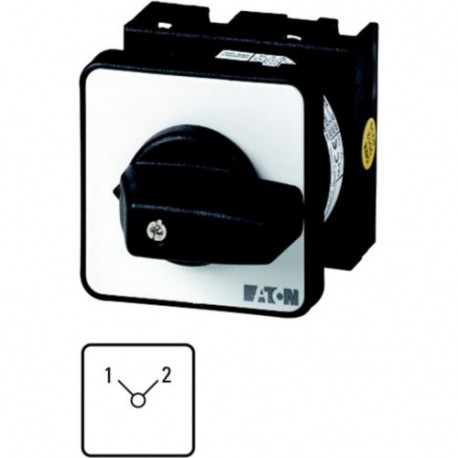

EATON - MOELLER T0-2-8221/E T0-2-8221/E 038847 Y7-38847 EATON ELECTRIC Changeoverswitches, Contacts: 4, 20 A, front plate: 1-2, 90 °, ma.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-8221/E 038847 Y7-38847 EATON ELECTRIC Changeoverswitches, Contacts: 4, 20 A, front plate: 1-2, 90 °, ma..

T0-2-8221/E

038847

Y7-38847

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 20 A, front plate: 1-2, 90 °, maintained, flush mounting Switch 4-pole 20 A Indicator plate: 1-2 90° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, flush mounting, 2 contact unit(s), Contacts: 4, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 8221

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-2-8221/E is a changeover switch designed for general power routing and signal switching in low-voltage control enclosures. Panel builders integrate these manual switches to enable straightforward source toggling and circuit configuration changes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T0-2-8221/E
  • Catalogue code: 038847
  • Catalogue title: T0-2-8221/E 038847 Y7-38847 EATON ELECTRIC Changeoverswitches, Contacts: 4, 20 A, front plate: 1-2, 90 °, ma..
  • Product description: General specifications Product Name Eaton Moeller® series T0 Changeover switch Catalog Number 038847 Model Code T0-2-8221/E EAN 4015080388470 Product Length/Depth 86 mm Product Height 48 mm Product Width 48 mm Product We
  • Manufacturer summary: Changeoverswitches, Contacts: 4, 20 A, front plate: 1-2, 90 °, maintained, flush mounting Switch 4-pole 20 A Indicator plate: 1-2 90° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, flush mounting, 2 contact unit(

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
038847
Model Code
T0-2-8221/E
EAN
4015080388470
Product Length/Depth
86 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.108 kg
Certifications
CSA File No.: 012528
VDE 0660
UL 60947-4-1
CSA
CSA-C22.2 No. 94
IEC/EN 60947
IEC/EN 60204
IEC/EN 60947-3
UL
CE
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
