> EATON - MOELLER > Disconnectors and Cam Switches > 053083

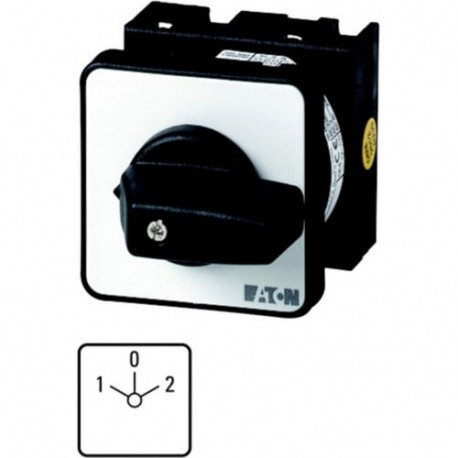

EATON - MOELLER T0-2-8211/EZ T0-2-8211/EZ 053083 Y7-53083 EATON ELECTRIC Changeoverswitches, Contacts: 4, 20 A, front plate: 1-0-2, 60 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-8211/EZ 053083 Y7-53083 EATON ELECTRIC Changeoverswitches, Contacts: 4, 20 A, front plate: 1-0-2, 60 °,..

T0-2-8211/EZ

053083

Y7-53083

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 20 A, front plate: 1-0-2, 60 °, maintained, centre mounting Switch 4-pole switch 20 A Indicator plate: 1-0-2 60° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, centre mounting, 2 contact unit(s), Contacts: 4, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8211 Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
053083
Model Code
T0-2-8211/EZ
EAN
4015080530831
Product Length/Depth
106 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.124 kg
Certifications
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
CE
CSA File No.: 012528
IEC/EN 60947
CSA
UL File No.: E36332
CSA-C22.2 No. 94
UL 60947-4-1
UL
VDE 0660
CSA Class No.: 3211-05
IEC/EN 60947-3
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 053083 Low-voltage industrial controls and switchgear (EC001105)
Feature Name Feature Value
Model (EF000010) Reverser
Number of poles (EF001391) 2
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) No
Rated permanent current Iu (EF001389) 20 A
Rated operation current Ie at AC-3, 400 V (EF001392) 11.5 A
Rated operation power at AC-3, 400 V (EF001364) 4 kW
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Housing material (EF001596) Plastic
Type of control element (EF006976) Short thumb-grip
Type of electrical connection of main circuit (EF006819) Screw connection

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
