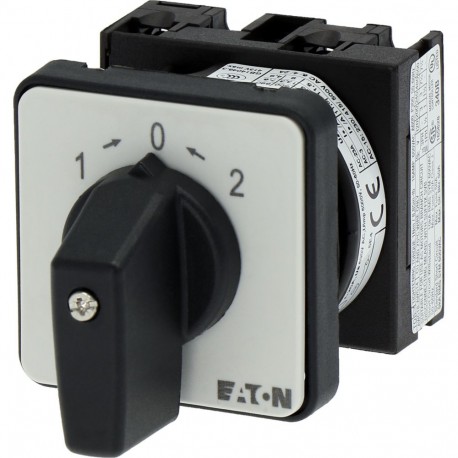

EATON - MOELLER T0-1-8214/E T0-1-8214/E 019863 Y7-19863 EATON ELECTRIC Changeoverswitches, Contacts: 2, 20 A, front plate: 2 0 1, 45 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-8214/E 019863 Y7-19863 EATON ELECTRIC Changeoverswitches, Contacts: 2, 20 A, front plate: 2 0 1, 45 °, ..

T0-1-8214/E

019863

Y7-19863

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 2, 20 A, front plate: 2>0<1, 45 °, momentary, flush mounting Switch Switch 2 poles 20 A Indicator plate: 2>0<1 45° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, flush mounting, 1 contact unit(s), Contacts: 2, 45 °, momentary, With 0 (Off) position, with spring-return from both directions to 0, 2>0<1, Design number 8214 Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, with spring-return from both directions to 0, front plate: 2>0<1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller T0-1-8214/E changeover switch redirects power across multiple input lines, providing manual source control in industrial installations and machinery panels. Technicians rely on these heavy-duty switching devices to safely manage operational pathways and isolate circuit segments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 1
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
019863
Model Code
T0-1-8214/E
EAN
4015080198635
Product Length/Depth
76 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.083 kg
Certifications
UL Category Control No.: NLRV
CSA Class No.: 3211-05
CSA
CSA File No.: 012528
UL File No.: E36332
IEC/EN 60947
VDE 0660
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
CSA-C22.2 No. 94
CE
IEC/EN 60947-3
UL 60947-4-1
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
