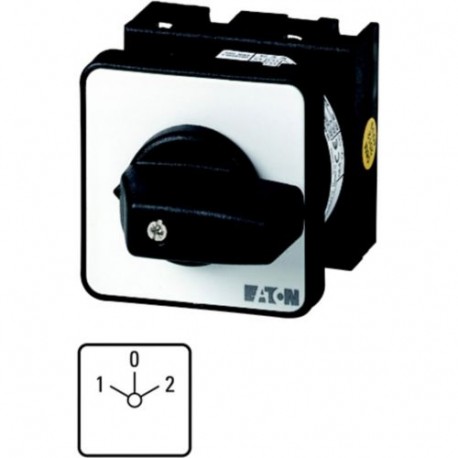

EATON - MOELLER T0-1-8210/Z T0-1-8210/Z 019862 Y7-19862 EATON ELECTRIC Changeoverswitches, Contacts: 2, 20 A, front plate: 1-0-2, 60 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-8210/Z 019862 Y7-19862 EATON ELECTRIC Changeoverswitches, Contacts: 2, 20 A, front plate: 1-0-2, 60 °, ..

T0-1-8210/Z

019862

Y7-19862

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 2, 20 A, front plate: 1-0-2, 60 °, maintained, rear mounting Switch 2-pole switch 20 A Indicator plate: 1-0-2 60° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, rear mounting, 1 contact unit(s), Contacts: 2, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8210 Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A changeoverswitch like the Eaton Moeller T0-1-8210/Z is an essential electrical component used to manually redirect power between multiple source lines or control circuits in industrial machinery installations. Operators rely on these devices to safely toggle operating modes or switch active supply lines without interrupting overall system integrity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 1
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
019862
Model Code
T0-1-8210/Z
EAN
4015080198628
Product Length/Depth
118 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.112 kg
Certifications
CSA
CSA File No.: 012528
UL Category Control No.: NLRV
IEC/EN 60947
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
CE
CSA-C22.2 No. 94
IEC/EN 60204
UL
UL 60947-4-1
UL File No.: E36332
VDE 0660
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
