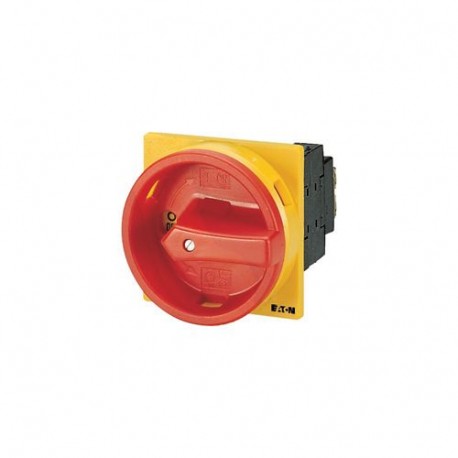

EATON - MOELLER T0-1-102/EA/SVB T0-1-102/EA/SVB 091078 Y7-91078 EATON ELECTRIC Main switch, 2 pole, 20 A, Emergency-Stop function, 90 °, Loc.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-102/EA/SVB 091078 Y7-91078 EATON ELECTRIC Main switch, 2 pole, 20 A, Emergency-Stop function, 90 °, Loc..

T0-1-102/EA/SVB

091078

Y7-91078

EATON - MOELLER

1 Pcs.

Main switch, 2 pole, 20 A, Emergency-Stop function, 90 °, Lockable in the 0 (Off) position, flush mounting General Switch 2 poles 20 A 90° Flush mount Handle Eaton Moeller® series T0 Main switch, T0, 20 A, flush mounting, 1 contact unit(s), 2 pole, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-1-102/EA/SVB main switch features an Emergency-Stop function with lockable zero-position security for flush-mounted industrial control panels. It ensures safe operational shutdowns across machinery and automation circuits.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T0-1-102/EA/SVB
  • Catalogue code: 091078
  • Catalogue title: T0-1-102/EA/SVB 091078 Y7-91078 EATON ELECTRIC Main switch, 2 pole, 20 A, Emergency-Stop function, 90 °, Loc..
  • Product description: General specifications Product Name Eaton Moeller® series T0 Main switch Catalog Number 091078 Model Code T0-1-102/EA/SVB EAN 4015080910787 Product Length/Depth 101 mm Product Height 74 mm Product Width 65 mm Product Wei
  • Manufacturer summary: Main switch, 2 pole, 20 A, Emergency-Stop function, 90 °, Lockable in the 0 (Off) position, flush mounting General Switch 2 poles 20 A 90° Flush mount Handle Eaton Moeller® series T0 Main switch, T0, 20 A, flush mounting

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Main switch
Catalog Number
091078
Model Code
T0-1-102/EA/SVB
EAN
4015080910787
Product Length/Depth
101 mm
Product Height
74 mm
Product Width
65 mm
Product Weight
0.135 kg
Certifications
VDE 0660
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
CE
CSA File No.: 012528
UL File No.: E36332
CSA Class No.: 3211-05
IEC/EN 60947-3
CSA
UL Category Control No.: NLRV
UL
UL 60947-4-1
CSA-C22.2 No. 94
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
