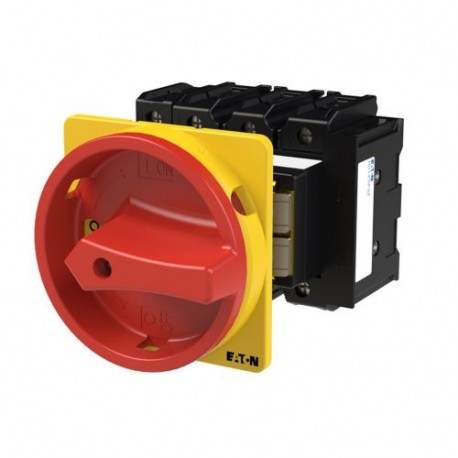

EATON - MOELLER P3-100/V/SVB/N/HI11 P3-100/V/SVB/N/HI11 081589 Y7-81589 EATON ELECTRIC Main switch, 3 pole + N + 1 N/O + 1 N/C, 100 A, Emergency.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-100/V/SVB/N/HI11 081589 Y7-81589 EATON ELECTRIC Main switch, 3 pole + N + 1 N/O + 1 N/C, 100 A, Emergency..

P3-100/V/SVB/N/HI11

081589

Y7-81589

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + N + 1 N/O + 1 N/C, 100 A, Emergency-Stop function, Lockable in the 0 (Off) position, rear mounting General Switch 3 poles + N + 1 NO + 1 NC 100 A Bottom mount Eaton Moeller® series P3 Main switch, P3, 100 A, rear mounting, 3 pole + N, 1 N/O, 1 N/C, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller main switch provides essential safety isolation and emergency-stop functionality for heavy-duty industrial machinery and power distribution panels. These multi-pole disconnectors are frequently mounted inside or on the back of enclosures to allow secure manual control of electrical feeds. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: P3-100/V/SVB/N/HI11
  • Catalogue code: 081589
  • Catalogue title: P3-100/V/SVB/N/HI11 081589 Y7-81589 EATON ELECTRIC Main switch, 3 pole + N + 1 N/O + 1 N/C, 100 A, Emergency..
  • Product description: General specifications Product Name Eaton Moeller® series P3 Main switch Catalog Number 081589 Model Code P3-100/V/SVB/N/HI11 EAN 4015080815891 Product Length/Depth 150 mm Product Height 114 mm Product Width 105 mm Produ

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 Main switch
Catalog Number
081589
Model Code
P3-100/V/SVB/N/HI11
EAN
4015080815891
Product Length/Depth
150 mm
Product Height
114 mm
Product Width
105 mm
Product Weight
0.528 kg
Certifications
CSA Class No.: 3211-05
IEC/EN 60947-3
UL File No.: E36332
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
CE
UL 60947-4-1
CSA
IEC/EN 60947
UL Category Control No.: NLRV
VDE 0660
CSA-C22.2 No. 94
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
