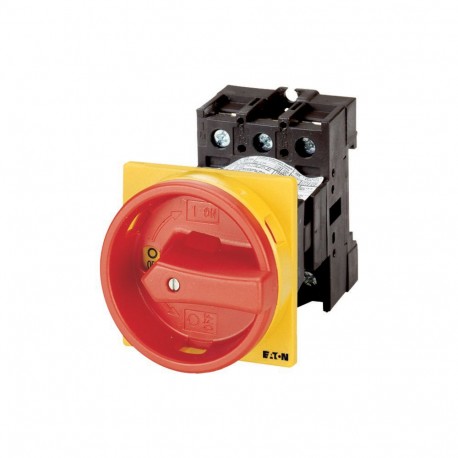

EATON - MOELLER P1-32/V/SVB/2HI11 P1-32/V/SVB/2HI11 012554 Y7-12554 EATON ELECTRIC Main switch, 3 pole + 2 N/O + 2 N/C, 32 A, Emergency-Stop f.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-32/V/SVB/2HI11 012554 Y7-12554 EATON ELECTRIC Main switch, 3 pole + 2 N/O + 2 N/C, 32 A, Emergency-Stop f..

P1-32/V/SVB/2HI11

012554

Y7-12554

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + 2 N/O + 2 N/C, 32 A, Emergency-Stop function, rear mounting General Switch 3 poles + 2 NO + 2 NC 32 A Bottom panel mounting Eaton Moeller® series P1 Main switch, P1, 32 A, rear mounting, 3 pole, 2 N/O, 2 N/C, Emergency switching off function, With red rotary handle and yellow locking ring Main switch, P1, Rated uninterrupted current (Iu): 32 A, Functions: Interlockable, Emergency switching off function, Fitted with: Red rotary handle and yellow locking ring, Mounting method: Rear mounting, Number of poles: Three-pole, Degree of Protection: NEMA 1

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Applied extensively as a primary safety mechanism, the Eaton Moeller P1-32/V/SVB/2HI11 main switch isolates electrical machinery from incoming supply lines to prevent accidental startup. Operators rely on these robust devices for emergency stopping and routine servicing tasks across industrial processing environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 13 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
012554
Model Code
P1-32/V/SVB/2HI11
EAN
4015080125549
Product Length/Depth
90 mm
Product Height
70 mm
Product Width
63 mm
Product Weight
0.297 kg
Certifications
UL
UL Category Control No.: NLRV
VDE 0660
CSA
CE
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
IEC/EN 60204
UL 60947-4-1
IEC/EN 60947
CSA File No.: 012528
UL File No.: E36332
CSA Class No.: 3211-05
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
