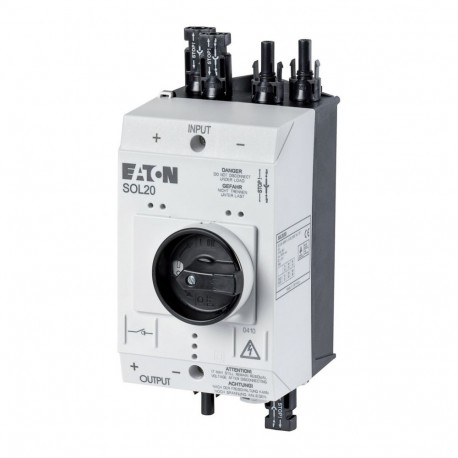

EATON - MOELLER SOL20/2MC4 SOL20/2MC4 120915 Y7-120915 EATON ELECTRIC Switch-disconnector, DC current, 20A, 2 strings MC4 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SOL20/2MC4 120915 Y7-120915 EATON ELECTRIC Switch-disconnector, DC current, 20A, 2 strings MC4

SOL20/2MC4

120915

Y7-120915

EATON - MOELLER

1 Pcs.

Switch-disconnector, DC current, 20A, 2 strings MC4 SOL20/2MC4 Eaton Moeller® series SOL20 Switch-disconnector, DC current, 20A, 2 strings MC4 Switch-disconnector, Locking facility: in OFF-Position: yes, Degree of Protection: IP65, Standards: IEC/EN 60947-3, TÜV-certified

Connectors > Switch disconnector
Solar Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed specifically for photovoltaic installations, the Eaton Moeller SOL20/2MC4 switch-disconnector safely handles direct current switching requirements across solar strings. These specialized components allow operators to isolate DC power sources reliably during installation and emergency procedures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 1000 V
  • Rated operating voltage (EF001435): 1000 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-23, 400 V (EF011777): 0 A
  • Rated permanent current at AC-21, 400 V (EF009165): 0 A
  • Rated operation power at AC-3, 400 V (EF001364): 0 kW
  • Rated short-time withstand current lcw (EF007050): 0.36 kA
  • Rated operation power at AC-23, 400 V (EF007027): 0 kW
  • Switching power at 400 V (EF009166): 20 kW
  • Conditioned rated short-circuit current Iq (EF001444): 0 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P-SOL Switch-disconnector
Catalog Number
120915
Model Code
SOL20/2MC4
EAN
4015081187454
Product Length/Depth
234 mm
Product Height
130 mm
Product Width
100 mm
Product Weight
0.888 kg
Certifications
IEC/EN 60947-3
TÜV-certified
Catalog Notes
MC4 connector (Stäubli)

Features & Functions

Actuator color
Black
Actuator type
Toggle
Design
Enclosed
Features
Isolating characteristics
Fitted with:
Voltage release optional
Locking facility
Lockable in the 0 (Off) position
Number of poles
Two-pole

General

Connection type
MC4, Outputs
MC4, Inputs
Degree of protection
NEMA Other
Degree of protection (front side)
IP65
Lifespan, electrical
1,500 Operations
Lifespan, mechanical
100,000 Operations
Mounting position
As required
Operating frequency
120 Operations/h
Product Category
Switchgear for photovoltaic systems
Protection class
2
Suitable for
Ground mounting

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Rated operational current (Ie) at DC-21A
20 A
Rated operational power at AC-23A, 400 V, 50 Hz
0 kW
Rated operational power at AC-3, 380/400 V, 50 Hz
0 kW
Rated operational voltage (Ue) at AC - min
1000 V
Rated operational voltage (Ue) at AC - max
1000 V
Rated uninterrupted current (Iu)
20 A
Resistance
8 mΩ (internal)

Short-circuit rating

Rated conditional short-circuit current (Iq)
0 kA
Rated short-circuit making capacity (Icm)
0.32 kA (up to 440 V, 50/60 Hz)
Rated short-time withstand current (Icw)
0.36 kA

Contacts

Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0

Design verification

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
