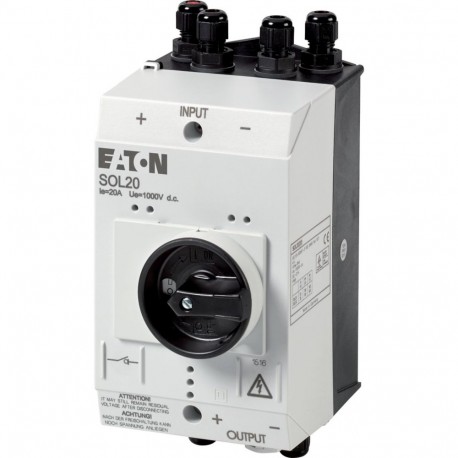

Switch-disconnector, DC current, 20A, 2 strings M12 SOL20/2MV Eaton Moeller® series SOL20 Switch-disconnector, DC current, 20A, 2 strings M12 Switch-disconnector, Locking facility: in OFF-Position: yes, Degree of Protection: IP65, Standards: IEC/EN 60947-3, TÜV-certified

Connectors > Switch disconnector
Solar Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series P-SOL Switch-disconnector
Catalog Number
120919
Model Code
SOL20/2MV
EAN
4015081187492
Product Length/Depth
224 mm
Product Height
130 mm
Product Width
100 mm
Product Weight
0.836 kg
Certifications
IEC/EN 60947-3
TÜV-certified

Features & Functions

Actuator color
Black
Actuator type
Toggle
Design
Enclosed
Features
Isolating characteristics
Fitted with:
Voltage release optional
Locking facility
Lockable in the 0 (Off) position
Number of poles
Two-pole

General

Connection type
Threaded connection M16, Outputs
Screw connector M12, Inputs
Degree of protection
NEMA Other
Degree of protection (front side)
IP65
Lifespan, electrical
100,000 Operations
Lifespan, mechanical
100,000 Operations
Mounting position
As required
Operating frequency
120 Operations/h
Product Category
Switchgear for photovoltaic systems
Protection class
2
Suitable for
Ground mounting

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Rated operational current (Ie) at DC-21A
20 A
Rated operational power at AC-23A, 400 V, 50 Hz
0 kW
Rated operational power at AC-3, 380/400 V, 50 Hz
0 kW
Rated operational voltage (Ue) at AC - min
1000 V
Rated operational voltage (Ue) at AC - max
1000 V
Rated uninterrupted current (Iu)
20 A
Resistance
8 mΩ (internal)

Short-circuit rating

Rated conditional short-circuit current (Iq)
0 kA
Rated short-circuit making capacity (Icm)
0.32 kA (up to 440 V, 50/60 Hz)
Rated short-time withstand current (Icw)
0.24 kA

Contacts

Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0

ETIM for 120919 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) No
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 1000 V
Rated operating voltage (EF001435) 1000 V
Rated permanent current Iu (EF001389) 20 A
Rated permanent current at AC-23, 400 V (EF011777) 0 A
Rated permanent current at AC-21, 400 V (EF009165) 0 A
Rated operation power at AC-3, 400 V (EF001364) 0 kW
Rated short-time withstand current lcw (EF007050) 0.24 kA
Rated operation power at AC-23, 400 V (EF007027) 0 kW
Switching power at 400 V (EF009166) 20 kW
Conditioned rated short-circuit current Iq (EF001444) 0 kA
Number of poles (EF001391) 2
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) Yes
Device construction (EF008240) Complete device in housing
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Black
Type of control element (EF006976) Toggle
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Other
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) Other
Width (EF000008) 100 mm
Height (EF000040) 130 mm
Depth (EF000049) 224 mm
